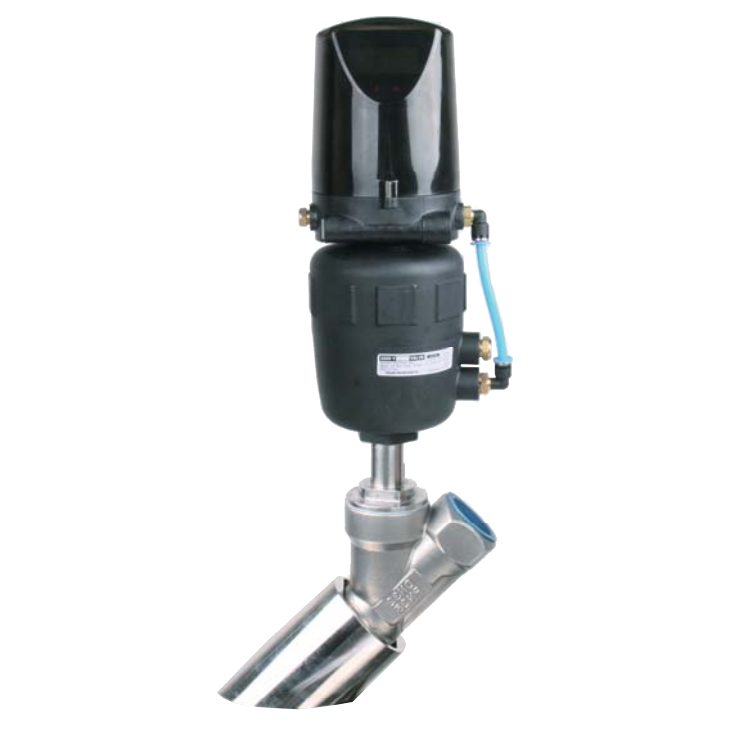

TMP-3000 Smart Positioner

Brand: Young Tech Co., Ltd
The Rotork TMP-3000 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PD control.
Features
  • Interchangeable fail action
  • PD control
  • Feedback signal
  • Near zero consumption level
  • 4 buttons for local control
  • Auto calibration
  • HART Communication
  • LCD display with blacklight
  • Simple mounting
show more
Images are representations only.
The Rotork TMP-3000 Smart Valve Positioner accurately controls valve stroke, according to input signal of 4-20mA, which is being input from the controller. In addition, built-in micro-processing operator optimizes the positioner's performance and provides unique functions such as Auto calibration, PD control.
Features
  • Interchangeable fail action
  • PD control
  • Feedback signal
  • Near zero consumption level
  • 4 buttons for local control
  • Auto calibration
  • HART Communication
  • LCD display with blacklight
  • Simple mounting

TMP-3000

Acting Type

Flow Capacity

Flow Capacity

Options

Fail Option

Specifications

Ambient Temperature Range

  • -10° to 60° C (14° to 140° F)

BSP Connection

  • G 1/8"

Conduit Connection

  • 2 - M16 x 1.5

Consumption

  • < 4 W

Cover Material

  • Polycarbonate

Enclosure, Body Material

  • PPS (Polyphenylene Sulfide)

Environmental Protection

  • IP66

Filter

  • 5 microns

Flow Capacity

  • 20 LPM
  • 50 LPM

Input Signal

  • 0/4-20 mA, 0 to 5/10 V

Output

  • 4-20 mA

Supply Pressure

  • bar: 0 to 7
  • kPa: 0 to 700
  • psig: 0 to 101.5

Supply Voltage

  • 24 Vdc ± 10%
