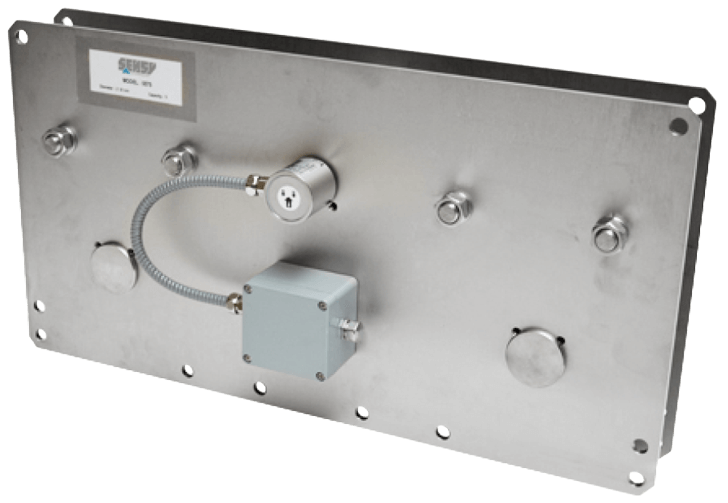

5570/5575 Running Line Tensiometer

Brand: Sensy S.A.
Load cell specially designed to measure the tension force applied to a running cable or a running rope. Features:
  • Custom made design according to your need:
    • Type of rope (steel, synthetic, optical fiber, umbilical)
    • Capacity
    • Rope diameter (Ø from 6 up to 115 mm)
    • Maximum winding speed
    • Accuracy
  • Protection: IP 65
  • Material:
    • Load pin: stainless steel
    • Other: nickel plated steel or stainless steel (option)
  • Cable length: 6 m
  • Available options:
    • Load pin’s certification Ex 'i' (ATEX, IECEX, CSA)
    • Load pin’s explosion proof Certification Ex 'd' (ATEX)
    • Amplified output (V or mA) and digital output signal (RS-485)
    • Protection IP 68 or special for marine environment
show more
Load cell specially designed to measure the tension force applied to a running cable or a running rope. Features:
  • Custom made design according to your need:
    • Type of rope (steel, synthetic, optical fiber, umbilical)
    • Capacity
    • Rope diameter (Ø from 6 up to 115 mm)
    • Maximum winding speed
    • Accuracy
  • Protection: IP 65
  • Material:
    • Load pin: stainless steel
    • Other: nickel plated steel or stainless steel (option)
  • Cable length: 6 m
  • Available options:
    • Load pin’s certification Ex 'i' (ATEX, IECEX, CSA)
    • Load pin’s explosion proof Certification Ex 'd' (ATEX)
    • Amplified output (V or mA) and digital output signal (RS-485)
    • Protection IP 68 or special for marine environment
5570-DIA22-8T-15m/m
SENSY Running Line Tensiometer, 20mm, Capacity 8t, ATEX
Out of Stock

Specifications

Brand

Applications

  • Force Measurement of Winches
  • Mooring Control in Oil & Gas & Marine Equipments
  • ROV Umbilical Tension Control
  • Single Rope Cranes Load Limitation
  • Tension Measurement of Towage & Haulage Cables

Approvals & Certifications

  • ATEX Ex I, Ex D
  • CE
  • CSA
  • IECEx

Cable Length

  • 19.69 feet (6 meters)

Capacity

  • 0.4 to 600 T

Communication

  • RS-485

Enclosure, Body Material

  • Alloy Steel
  • Nickel-Plated Steel
  • Stainless Steel

Environmental Protection

  • IP65
  • IP67
  • IP68

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms

Load

  • Breaking Load: > 300% of Full Scale
  • Permissible Dynamic Loading: 70% of Full Scale

Load Limit

  • 200% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Nominal Sensitivity: ± 1 mV/V

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.1% of Full Scale/10° C (18° F)
