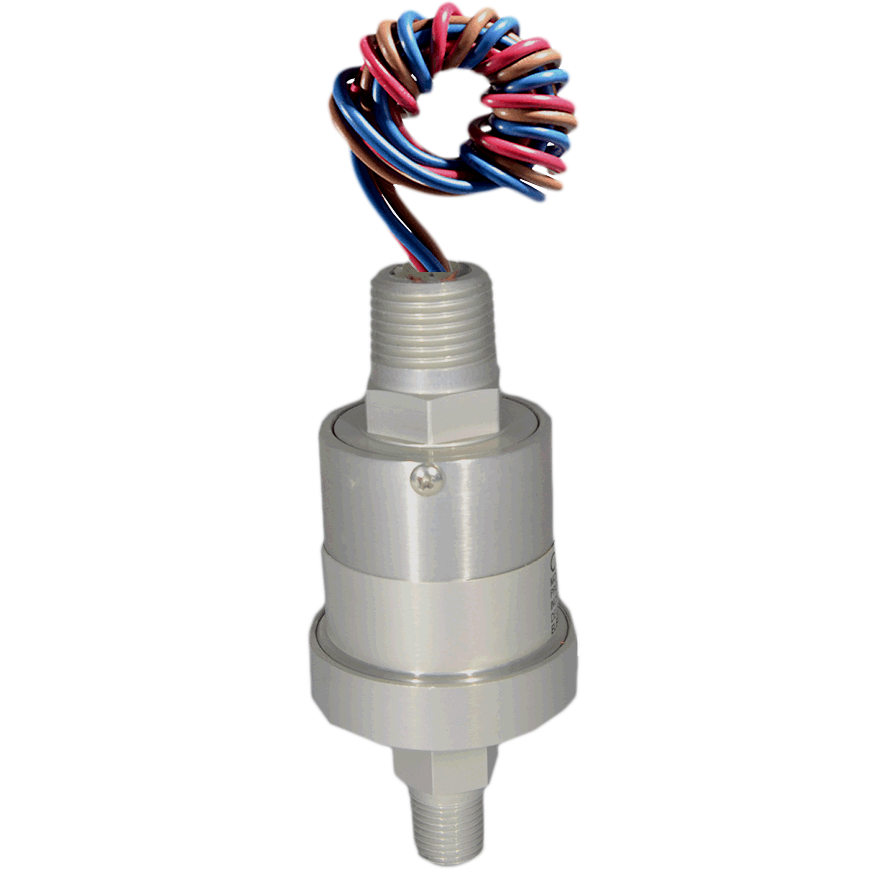

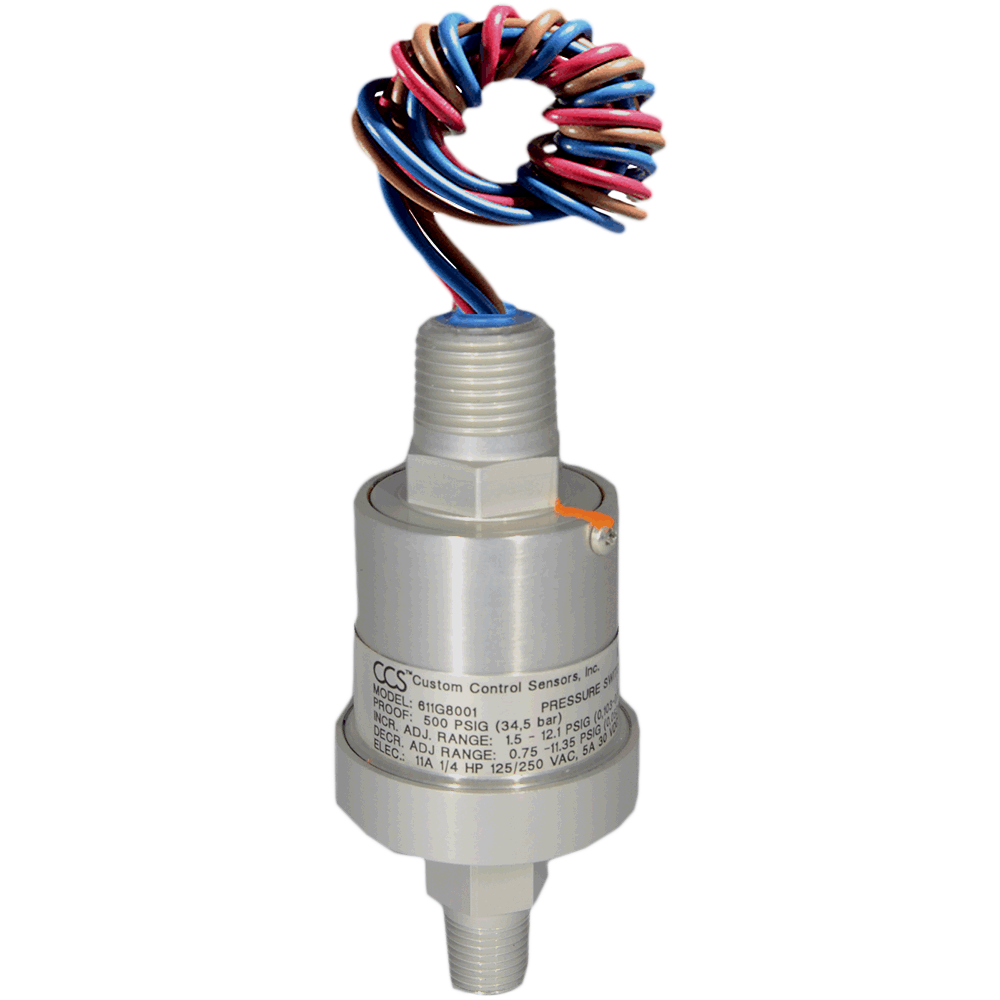

611G8000 Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 180 psig, 10.4 to 1241.0 kPa, 0.103 to 12.4 bar
    • Decreasing: 0.75 to 173 psig, 5.2 to 1192.7 kPa, 0.052 to 11.92 bar
  • Deadband: Approximately 0.75 to 7 psi, 5.17 to 48.2 kPa, 0.052 to 0.483 bar
  • System Pressure (Maximum): 250 to 500 psig, 1723.68 to 3447.3 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1000 psig, 3447.4 to 6894.7 kPa, 34.5 to 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • CE Mark, General Purpose
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 180 psig, 10.4 to 1241.0 kPa, 0.103 to 12.4 bar
    • Decreasing: 0.75 to 173 psig, 5.2 to 1192.7 kPa, 0.052 to 11.92 bar
  • Deadband: Approximately 0.75 to 7 psi, 5.17 to 48.2 kPa, 0.052 to 0.483 bar
  • System Pressure (Maximum): 250 to 500 psig, 1723.68 to 3447.3 kPa, 17.2 to 34.5 bar
  • Proof Pressure: 500 to 1000 psig, 3447.4 to 6894.7 kPa, 34.5 to 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Male NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT or DPDT
  • CE Mark, General Purpose
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

14 models matching criteria
611G8001
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 1.5 to 12.1 psig, 10.4 to 83.4 kPa, 0.103 to 0.83 bar
    • Decreasing: 0.75 to 11.35 psig, 5.2 to 78.2 kPa, 0.052 to 0.78 bar

  • Deadband: Approximately 0.75 psi, 5.17 kPa, 0.052 bar
  • System Pressure (Maximum): 250 psig, 1723.68 kPa, 17.2 bar
  • Proof Pressure: 500 psig, 3447.4 kPa, 34.5 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, General Purpose
8 In Stock
$455.20USD
Does not ship to VA, US
611G8005
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 30.1 to 70 psig, 207.6 to 482.6 kPa, 2.075 to 4.83 bar
    • Decreasing: 27.1 to 67 psig, 186.9 to 461.9 kPa, 1.87 to 4.62 bar

  • Deadband: Approximately 3 psi, 20.68 kPa, 0.21 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, General Purpose
6 In Stock
$455.20USD
Does not ship to VA, US
611G8003
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 12.1 to 30 psig, 83.5 to 206.8 kPa, 0.83 to 2.07 bar
    • Decreasing: 10.1 to 28 psig, 69.7 to 193.0 kPa, 0.70 to 1.93 bar

  • Deadband: Approximately 2 psi, 13.79 kPa, 0.138 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, General Purpose
5 - 7 weeks
$455.20USD
Does not ship to VA, US
611G8007
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 70.1 to 180 psig, 483.4 to 1241.0 kPa, 4.83 to 12.4 bar
    • Decreasing: 63.1 to 173 psig, 435.1 to 1192.7 kPa, 4.35 to 11.92 bar

  • Deadband: Approximately 7 psi, 48.26 kPa, 0.483 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, General Purpose
5 - 7 weeks
$455.20USD
Does not ship to VA, US
611GM8001
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 1.5 to 12.1 psig, 10.4 to 83.4 kPa, 0.103 to 0.83 bar
    • Decreasing: 0.75 to 11.35 psig, 5.2 to 78.2 kPa, 0.052 to 0.78 bar

  • Deadband: Approximately 0.75 psi, 5.17 kPa, 0.052 bar
  • System Pressure (Maximum): 250 psig, 1723.69 kPa, 17.2 bar
  • Proof Pressure: 500 psig, 3447.38 kPa, 34.5 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: DPDT
  • CE Mark, General Purpose
5 - 7 weeks
Non-Cancellable / Non-Refundable
$603.01USD
Does not ship to VA, US
611GM8005
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 30.1 to 70 psig, 207.6 to 482.6 kPa, 2.075 to 4.83 bar
    • Decreasing: 27.1 to 67 psig, 186.9 to 461.9 kPa, 1.87 to 4.62 bar

  • Deadband: Approximately 3 psi, 20.68 kPa, 0.21 bar
  • System Pressure (Maximum): 500 psig, 3447.38, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: DPDT
  • CE Mark, General Purpose
5 - 7 weeks
Non-Cancellable / Non-Refundable
$603.01USD
Does not ship to VA, US
611GM8003
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 12.1 to 30 psig, 83.5 to 206.8 kPa, 0.83 to 2.07 bar
    • Decreasing: 10.1 to 28 psig, 69.7 to 193.0 kPa, 0.70 to 1.93 bar

  • Deadband: Approximately 2 psi, 13.79 kPa, 0.139 bar
  • System Pressure (Maximum): 500 psig, 3447.38, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: DPDT
  • CE Mark, General Purpose
5 - 7 weeks
Non-Cancellable / Non-Refundable
$823.62USD
Does not ship to VA, US
611GM8007
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 70.1 to 180 psig, 483.4 to 1241.0 kPa, 4.83 to 12.4 bar
    • Decreasing: 63.1 to 173 psig, 435.1 to 1192.7 kPa, 4.35 to 11.92 bar

  • Deadband: Approximately 7 psi, 48.26 kPa, 0.483 bar
  • System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
  • Proof Pressure: 1000 psig, 6894.76 kPa, 68.9 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: DPDT
  • CE Mark, General Purpose
5 - 7 weeks
Non-Cancellable / Non-Refundable
$880.24USD
Does not ship to VA, US
611G8001-7075
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/4" NPT Aluminum Port, Polyimide,Buna-N, DIN Connect View More
  • Adjustable Set Point Range:

    • Increasing: 1.5 to 12.1 psig, 10.4 to 83.4 kPa, 0.103 to 0.83 bar
    • Decreasing: 0.75 to 11.35 psig, 5.2 to 78.2 kPa, 0.052 to 0.78 bar

  • Deadband: Approximately 0.75 psi, 5.17 kPa, 0.052 bar
  • System Pressure (Maximum): 250 psig, 1723.68 kPa, 17.2 bar
  • Proof Pressure: 500 psig, 3447.4 kPa, 34.5 bar
  • Wetted Materials:
    • Pressure Port: 1/4" MNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
    • Connector: Electrical w/4 Blades

  • Relay: SPDT
  • CE Mark, General Purpose
5 - 7 weeks
$894.22USD
Does not ship to VA, US
611GM155
CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, DPDT
10 - 12 weeks
Non-Cancellable / Non-Refundable
Show More Models (3)
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • EMC
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.052 to 0.483
  • kPa: 5.2 to 48.2
  • psi: 0.75 to 7

Diaphragm Material

  • Polyimide

Electrical - Free Leads

  • 18” (45 cm) Free Leads
  • 18” (45 cm) Teflon Leadwire

Electrical Connectors

  • 1/2” NPT Male
  • Electrical Connector with 4-Blades, Conforms to DIN-43650
  • Electrical Connector with Gold Contacts & Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 34.5 to 68.9
  • kPa: 3,447 to 6,895
  • psig: 500 to 1,000

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.052 to 11.92
  • kPa: 5.2 to 1,193
  • psig: 0.75 to 173

Set Point - Increasing

  • bar: 0.103 to 12.41
  • kPa: 10.4 to 1,241
  • psig: 1.5 to 180

Standard Features

  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 17.2 to 34.5
  • kPa: 1,724 to 3,447
  • psig: 250 to 500
