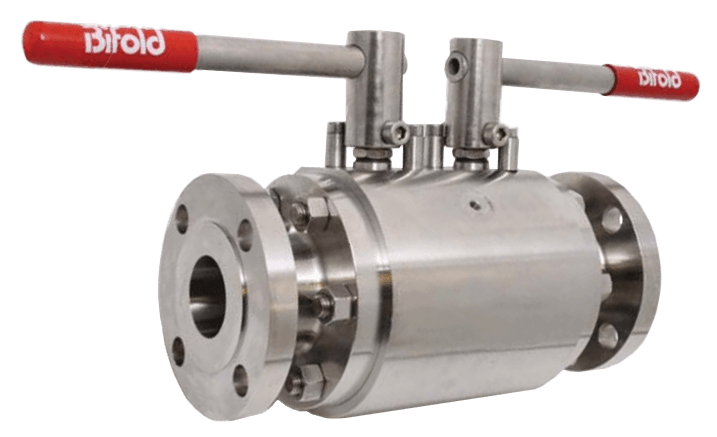

BV09 Process DBB Valve

Brand: Bifold Group
Request a Quote
Favorite
This range of products is designed to replace conventional multi-valve installations currently in use on process lines. By combining customer specified valves into a single manifold the number of leak paths is reduced resulting in a one unit solution also providing positive installation space, cost and weight savings.
Features
  • 1/2" to 2" N.B. flanges (15 to 50 DN)
  • ANSI B16.5 150 2500 flange class and API 10,000
  • 1/2" NPT (female) standard outlet
  • 1/2" NPT (female) standard vent
  • Variety of optional end connection siizes and thread forms
  • Standard materials of construction: stainless steel ASTM A182 F316 / F316L, carbon steel ASTM A350 LF2 / A105, duplex ASTM A182 F51
  • Optional materials include Super Duplex, Monel, Hastelloy®, 6Mo, Incoloy®
  • Combined needle and O.S. & Y. valves available
  • Raised face and ring type joint flange face styles
  • One-piece forged construction flange as standard
  • Optional fire safe designed to meet BS6755 Part 2 / API 607
  • Pressure boundary designs calculated to ASME VIII Division 1
  • Full ASME B16.34 design
  • Heat code traceable material to EN10204.3.1
  • Bubble tight shut off valve seats
  • Optional PEEK tips available
  • Optional locking and anti tamper devices for all valve types available
  • NACE MR 0175 / ISO 15156 compliant material available on request
  • Permanent marked body with full specification details
  • Available with various non-threaded connections
show more
Images are representations only.
This range of products is designed to replace conventional multi-valve installations currently in use on process lines. By combining customer specified valves into a single manifold the number of leak paths is reduced resulting in a one unit solution also providing positive installation space, cost and weight savings.
Features
  • 1/2" to 2" N.B. flanges (15 to 50 DN)
  • ANSI B16.5 150 2500 flange class and API 10,000
  • 1/2" NPT (female) standard outlet
  • 1/2" NPT (female) standard vent
  • Variety of optional end connection siizes and thread forms
  • Standard materials of construction: stainless steel ASTM A182 F316 / F316L, carbon steel ASTM A350 LF2 / A105, duplex ASTM A182 F51
  • Optional materials include Super Duplex, Monel, Hastelloy®, 6Mo, Incoloy®
  • Combined needle and O.S. & Y. valves available
  • Raised face and ring type joint flange face styles
  • One-piece forged construction flange as standard
  • Optional fire safe designed to meet BS6755 Part 2 / API 607
  • Pressure boundary designs calculated to ASME VIII Division 1
  • Full ASME B16.34 design
  • Heat code traceable material to EN10204.3.1
  • Bubble tight shut off valve seats
  • Optional PEEK tips available
  • Optional locking and anti tamper devices for all valve types available
  • NACE MR 0175 / ISO 15156 compliant material available on request
  • Permanent marked body with full specification details
  • Available with various non-threaded connections
Close

BV09

Ball Operator Type

Flange Size

Class

Flange Style

Vent Operator Type

Vent Connection

Material

Bolt Material

Bore Size

Seal Type

Surface Finish

View Details

BV09

Out of Stock
Close

Specifications

Brand

Approvals & Certifications

  • ISO 15156

Approvals & Certifications

  • Heat Code Traceable Material to EN10204-3-1

Bore Size

  • 1.49" (38 mm)
  • 1.96" (50 mm)

Enclosure Finish

  • Zinc

Enclosure, Body Material

  • Alloy 625 or Inconel®
  • Alloy 825 or Inconel®
  • Austenitic Stainless Steel (A182 F44)
  • Carbon Steel (ASTM A350 LF2 / A105)
  • Duplex Stainless Steel (ASTM A182 F51)
  • Hastelloy®
  • Incoloy®
  • Monel®
  • Super Duplex Stainless Steel (A182 F55)

Environmental Protection

  • Fire Safe Designed to Meet BS6755 Part 2 / API 607

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 10,000#
  • 1-1/2" (DN40) - 150#
  • 1-1/2" (DN40) - 1500#
  • 1-1/2" (DN40) - 2500#
  • 1-1/2" (DN40) - 300#
  • 1-1/2" (DN40) - 5000#
  • 1-1/2" (DN40) - 600#
  • 1-1/2" (DN40) - 900#

Flange Size - 1-13/16" (DN45)

  • 1-13/16' (DN45) - 300#
  • 1-13/16" (DN45) - 10,000#
  • 1-13/16" (DN45) - 150#
  • 1-13/16" (DN45) - 1500#
  • 1-13/16" (DN45) - 2500#
  • 1-13/16" (DN45) - 5000#
  • 1-13/16" (DN45) - 600#
  • 1-13/16" (DN45) - 900#

Flange Size - 2" (DN50)

  • 2" (DN50) - 10,000#
  • 2" (DN50) - 150#
  • 2" (DN50) - 1500#
  • 2" (DN50) - 2500#
  • 2" (DN50) - 300#
  • 2" (DN50) - 5000#
  • 2" (DN50) - 600#
  • 2" (DN50) - 900#

Flange Size - 2-1/16" (DN52)

  • 2-1/16" (DN52) - 10,000#
  • 2-1/16" (DN52) - 150#
  • 2-1/16" (DN52) - 1500#
  • 2-1/16" (DN52) - 2500#
  • 2-1/16" (DN52) - 300#
  • 2-1/16" (DN52) - 5000#
  • 2-1/16" (DN52) - 600#
  • 2-1/16" (DN52) - 900#

Flange Size - 3" (DN80)

  • 3" (DN80) - 10,000#
  • 3" (DN80) - 150#
  • 3" (DN80) - 1500#
  • 3" (DN80) - 2500#
  • 3" (DN80) - 300#
  • 3" (DN80) - 5000#
  • 3" (DN80) - 600#
  • 3" (DN80) - 900#

Flange Type

  • API
  • Flat Face (FF)
  • Raised Face (RF)
  • RTJ - Ring Typical Joint

NACE & NIST

  • NACE MR 0175

NPT Connection

  • 1/2" NPT Female

NPT Outlet

  • 1/2" NPT Female

Nut & Bolt Material

  • Alloy Steel (A193 B&M, A320 L7M Z&Y)

Port

  • Full
  • Reduced (Standard, Regular)

Pressure Range

  • psi: 0 to 15,000 (kPa: 0 to 103,500, bar: 0 to 1,035)

Seat/Seal Material

  • Seal: Graphite
  • Seal: HNBR
  • Seal: PEEK
  • Seal: RTFE (Reinforced Teflon)
  • Seal: V918 Elastomer
  • Seal: Viton

Valve Type

  • Manual

Vent Connection Size

  • 1/2" NPT Female
  • 1/2" NPT
  • 1/4" NPT
  • 3/4" NPT
Close
