Inventory

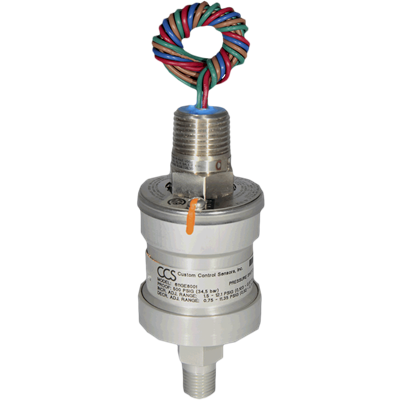

• Adjustable Set Point Range

  • Increasing

    • psig   3 - 20
    • kPa    20.7 - 137.8
    • bar    0.21 - 1.4
  • Decreasing

    • psig   1 - 18
    • kPa    6.9 - 124.1
    • bar    0.07 - 1.2
• Deadband - Approximate: 2 psi, 13.79 kPa, 0.14 bar
• System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
• Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion-Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark, NACE

Telematic stocks a large inventory of CCS Dual-Snap 6900GZE12 pressure switches.

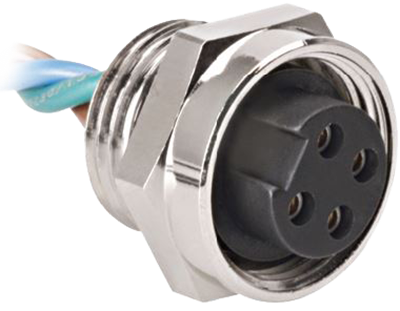

• Process Receptacle

  • Analog/HART and Discrete Circuits
• Connector

  • "minifast" Series
  • Male Receptacle
  • 316 Stainless Steel Housing
  • 4 Contacts / 3 x #18 AWG Wires
  • (14.5mm) = 1/2"-14 MNPT Threads
• Wires

  • TEW, 105 C, 600 V
  • (2) x # 18 AWG Circuits, Blue (-), Brown (+)
  • (1) x # 18 AWG Ground wire, Green/Yellow
• Length of Wires

  • 0.3 Meters
• Protection Class

  • IEC67, NEMA 4
• Approvals

  • Hazardous Location
  • CSA & UL, Feed-Thru Explosion Proof
  • Class 1, Div 1 (w Intrinsically Safe Barrier)
  • Class 1, Div 2 (w Turck "mini lock")

• Adjustable Set Point Range

  • Increasing

    • psig   45 - 375
    • kPa     310.3 - 2585.5
    • bar      3.1 - 25.9
  • Decreasing

    • psig   15 - 345
    • kPa     103.5 - 2378.6
    • bar      1.0 - 23.8
• Deadband - Approximate: 30 psi, 206.84 kPa, 2.0 bar
• System Pressure - Maximum: 1500 psig, 10,342.13 kPa, 103 bar
• Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark, NACE

Telematic stocks a large inventory of CCS Dual-Snap 6900GZE18 pressure switches.

• Adjustable Set Point Range

  • Increasing

    • psig   18 - 150
    • kPa     124.2 - 1034.2
    • bar      1.2 - 10.3
  • Decreasing

    • psig   6 - 138 psig
    • kPa    41.4 - 951.4 kPa
    • bar    0.41 - 9.5 bar
• Deadband - Approximate: 12 psi, 82.74 kPa, 0.8 bar
• System Pressure - Maximum: 1500 psig, 10,342.13 kPa, 103 bar
• Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark, NACE

Telematic stocks a large inventory of CCS Dual-Snap 6900GZE16 pressure switches.

• Type: Female 7/8" minifast Closure Cap
• Material:  Nickel-Plated Brass
• Lanyard: 6" Stainless Steel Loop

• Type: Male 7/8" minifast Closure Cap
• Material: Nickel-Plated Brass
• Lanyard: 6" Stainless Steel Loop

• The Kayden CLASSIC 800 Series Electronics Module is for use in the following CLASSIC Models

  • 810
  • 812
  • 814
  • 816
  • 828
  • 830
  • 832
• Input Power

  • 12-24 Vdc
  • 115-230 Vac, 50 to 60 Hz
• Outputs

  • Dual SPDT Relay Contacts Rated @ 5 Amps Resistive 230 Vac or 24 Vdc Maximum
  • Modbus via RS-485
• Advanced Diagnostics

  • Any open or shorted connection will result in a fault indication that also deactivates all relays and disables the heater circuitry
  • An internal watchdog circuit ensures that the microprocessor code is performing as expected, and a secondary external watchdog circuit ensures that the microprocessor itself is functioning. In the event of a malfunction, both circuits force the contacts open, illuminate the Fault LED and force the heater off. This prevents the possibility of a “runaway” heater or a high thermal offset.
• Intelligent User Controls
• The Kayden CLASSIC 800 Series Display Panel features bright LED indicators for easy viewing even in direct sunlight.
• An adjustable power-on Start-Up Bypass Timer is accessible from the Display Panel for low-flow alarm pump protection applications. This makes it possible to disable a pump on low flow and have it automatically restart after a predetermined time in the event of a power interruption.
• Four adjustable delay timers allow the introduction of repeatable time delay into the (set point) relay trip function. For example, in a pump protection application, this function will shut down the pump after the switch sensor has gone “dry” for the pre-set time (delay) limit.
• The Kayden RCM Software includes the option of locking the CLASSIC 800 Series Display Panel to eliminate field adjustments or tampering.
• Modbus allows multiple Kayden units to be connected to the same communications bus (via RS-485) and monitored simultaneously.

• 4-Adjustable Independent Switch Point Timers
• Adjustable Power-On Start-Up Bypass Timer
• Adjustable Set Point Deadbands
• Continuous Self-Test Diagnostics of Electronics & Sensor
• Display Panel Lock-Out (controlled via the Kayden RCM Software)
• Dual Independent Relays
• Intelligent User Interface
• Microprocessor-Based Electronics
• No Mechanical Jumpers or Trim-pots
• Process Temperature via Modbus and/or One or Both Alarm Relays
• Relays are Factory Set to Monitor Flow
• Temperature Compensation
• Variable Heater Power

• Adjustable Set Point Range

  • Increasing

    • psig   700 - 2200
    • kPa    4826.4 - 15,168.5
    • bar     48.3 - 151.68
  • Decreasing

    • psig   520 - 2020
    • kPa    3585.3 - 13,927
    • bar     35.9 - 139
• Deadband - Approximate: 180 psi, 1241.06 kPa, 12.4 bar
• System Pressure - Maximum: 3000 psig, 20,684.27 kPa, 207 bar
• Proof Pressure: 4500 psig, 31,026.41 kPa, 310 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark, NACE

Telematic stocks a large inventory of CCS Dual-Snap 6900GZE22 pressure switches.

• Flameproof (Hazardous Locations) T3
• Class I, Groups B, C & D; Ex d IIb + H₂
• AEx d IIB + H₂ (Class I, Zone 1 Group IIB + H₂)

• Epoxy Coated
• For the Kayden CLASSIC® 800 Series Switches

• Adjustable Set Point Range

  • Increasing

    • psig   9 - 75
    • kPa    62.1 - 517.1
    • bar    0.6 - 5.1
  • Decreasing

    • psig   3 - 69
    • kPa    20.7 - 475.7
    • bar    0.21 - 4.8
• Deadband - Approximate: 6 psi, 41.37 kPa, 0.41 bar
• System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
• Proof Pressure: 750 psi, 5171.07 kPa, 51.7 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark, NACE

Telematic stocks a large inventory of CCS Dual-Snap 6900GZE14 pressure switches.

• Adjustable Set Point Range

  • Increasing

    • psig   300 - 1000
    • kPa    2068.5 - 6894.7
    • bar    20.7 - 68.9
  • Decreasing

    • psig   225 - 925
    • kPa    1551.4 - 6377.6
    • bar    15.5 - 63.7
• Deadband - Approximate:  75 psi, 517.11 kPa, 5.1 bar
• System Pressure - Maximum: 2000 psig, 13,789.51 kPa, 138 bar
• Proof Pressure: 3000 psig, 20,684.27 kPa, 207 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark, NACE

Telematic stocks a large inventory of CCS Dual-Snap 6900GZE20 pressure switches.

• Adjustable Set Point Range

  • Increasing

    • psig    1800 - 3400
    • kPa     12,410.6 - 23,442.15
    • bar      124 - 234
  • Decreasing

    • psig    1520 - 3120
    • kPa     10,480.0 - 21,511.6
    • bar     105 - 215
• Deadband - Approximate: 280 psi, 1930.5 kPa, 19.3 bar
• System Pressure - Maximum: 5000 psig, 34,473.75 kPa, 345 bar
• Proof Pressure: 7500 psig, 51,710.63 kPa, 517 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark, NACE

• Adjustable Set Point Range

  • Increasing

    • psig  30 - 375
    • kPa   206.9 - 2585.5
    • bar    2 - 25.9
  • Decreasing

    • psig  10 - 355
    • kPa   69 - 2447.6
    • bar    0.7 - 24.4
• Deadband - Approximate: 20 psi, 137.89 kPa, 1.4 bar
• System Pressure - Maximum: 1500 psig, 10,342.13 kPa, 103 bar
• Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
• Wetted Materials

  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide
  • O-Ring: Buna N
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark, CRN

• V-614: Body Style - Hard Seat (.187" Orifice) 1/2" FNPT (Inlet) x 1/2" MNPT (Outlet)
• S: Stainless Steel Body and Bonnet
• C: Seat Material - Carbide Ball
• J: Stem Packing - PTFE Packed Style (Low Temp)
• Pressure & Temperature:

  • 10,000 PSI @ 93°C to -46°C Min.
  • 8,000 PSI @ 232°C Max.

• V-570: Body Style - Hard Seat (.187" Orifice) 1/2" MNPT x 1/2" FNPT
• S: Stainless Steel Body and Bonnet
• C: Seat Material - Carbide Ball
• J: Stem Packing - PTFE Packed Style (Low Temp)
• Pressure & Temperature:

  • 10,000 PSI @ 200°F
  • 8,000 PSI @ 450°F

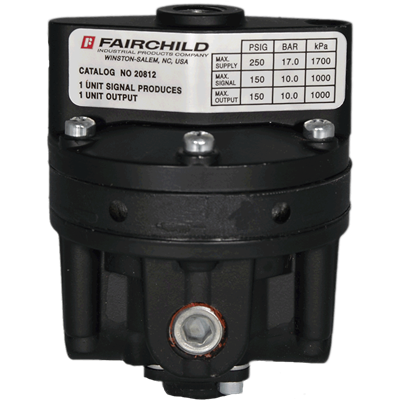

• 102: Model 10 Pneumatic Precision Regulator
• 6: Pressure Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
• 2: Pipe Size: 1/4" NPT

• Adjustable Set Point Range

  • Increasing

    • psig  3 - 20
    • kPa   20.7 - 137.8
    • bar    0.21 - 1.4
  • Decreasing

    • psig  1 - 18
    • kPa   6.9 - 124.1
    • bar    0.07 - 1.2
• Deadband - Approximate: 2 psi, 13.79 kPa, 0.14 bar
• System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
• Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
• Wetted Materials

  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide
  • O-Ring: Buna N
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark, CRN

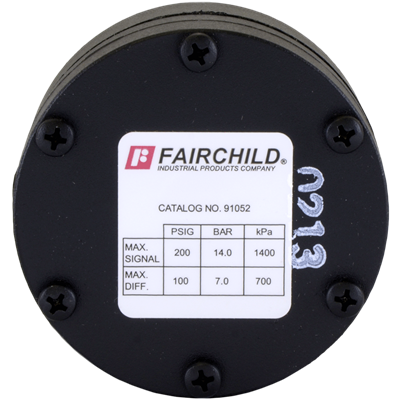

• Model: 91 High Pressure Selector
• Maximum Signal Pressure: 200 psig, 14.0 bar, 1400 kPa
• Switching Differential (Minimum): Less than 0.1 psig, 0.007 bar, 0.7 kPa
• Differential between Signals (Maximum): 100 psig, 7.0 bar, 700 kPa
• Pipe Size: 1/4" NPT
• Material of Construction

  • Body: Aluminum Alloy
  • Trim: Brass
  • Diaphragm: Dupont Fairprene-coated fabric

• Adjustable Set Point Range

  • Increasing

    • psig   330 - 1000
    • kPa    2275.3 - 6894.7
    • bar     22.8 - 68.9
  • Decreasing

    • psig   250 - 920
    • kPa    1723.7 - 6343.1
    • bar     17.2 - 63.4
• Deadband - Approximate: 80 psi, 551.58 kPa, 5.5 bar
• System Pressure - Maximum: 3000 psig, 20,684.27 kPa, 207 bar
• Proof Pressure: 5000 psig, 34,473.78 kPa, 345 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark, NACE

• V-506: 1/2" MNPT x 1/2" FNPT
• S: Stainless Steel Body and Bonnet
• C: Seat Material - Carbide Ball
• J: Stem Packing - PTFE Packed Style (Low Temp)

  • 10,000 psi Max. @ 93° to -40°C Min.
  • 8,000 psi Max. @ 232°C Max.

• Adjustable Set Point Range

  • Increasing

    • Inches H20 2 - 6.9
    • mbar                4.9 - 17.2
  • Decreasing

    • Inches H20 0.2 - 5.1
    • mbar                 0.5 - 12.7
• Deadband - Approximate: 1.5 Inches H20, 3.7 mbar
• System Pressure - Maximum: 10 psig, 689 mbar
• Proof Pressure: 25 psig, 1724 mbar
• Wetted Materials

  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide
  • O-Ring: Buna N
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark

• T: Electro-Pneumatic Transducer
• C: CSA (hazardous locations)
• X: Explosion/Flame proof
• I: Intrinsically Safe
• 78: Series model number
• 5: Moisture resistant (Piezo disc is coated to prevent moisture in air or gas shorting out circuit)
• 0: Temperature Range: -40°F to +160°F, -40°C to 71.2°C
• 4: Input: 4-20 mA
• 03: Output Range: 6-30 psig, 0.4-2 bar, 40-200 kPa
• E: Tapped Exhaust
• N: Natural Gas Media approved only for CSA and FM

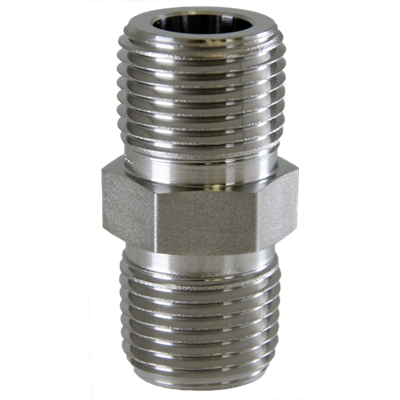

  • Includes secondary seal hex nipple with 10ft cable
• Supply Pressure: 35-120 psig, 2.4-8 bar, 240-800 kPa
• Conduit Fitting: 1/2" NPT
• Materials of Construction

  • Body & Housing: Chromate Treated Aluminum
  • Trim: Zinc Plated Steel, Stainless Steel
  • Orifice: Aluminum, Sapphire
  • Elastomers: Nitrile
  • Finish: Epoxy Powder Coating

• Adjustable Set Point Range

  • Increasing

    • psig  700 - 2200
    • kPa   4826.4 - 15,268
    • bar   48.3 - 152
  • Decreasing

    • psig  600 - 2100
    • kPa   4136.9 - 14,478
    • bar    41.4 - 145
• Deadband - Approximate: 100 psi, 689.47 kPa, 6.9 bar
• System Pressure - Maximum: 3000 psig, 20,684.27 kPa, 207 bar
• Proof Pressure: 4500 psig, 31,026.41 kPa, 310 bar
• Wetted Materials

  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide
  • O-Ring: Buna N
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark, CRN

• Adjustable Set Point Range

  • Increasing

    • psig  300 - 1000
    • kPa   2068.5 - 6894.7
    • bar   20.7 - 68.9
  • Decreasing

    • psig  250 - 950
    • kPa   1723.7 - 6550.0
    • bar    17.2 - 65.5
• Deadband - Approximate: 50 psi, 344.74 kPa, 3.5 bar
• System Pressure - Maximum: 2000 psig, 13,789.51 kPa, 138 bar
• Proof Pressure: 3000 psig, 20,684.27 kPa, 207 bar
• Wetted Materials

  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide
  • O-Ring: Buna N
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark, NACE, CRN

• Adjustable Set Point Range

  • Increasing

    • °F   80° to 205°
    • °C   27° to 96°
  • Decreasing

    • °F   60° to 198°
    • °C   16° to 92°
• Deadband - Approximate:

  • At Bottom of Range: 20°F, 11°C
  • At Top of Range: 5°F, 4°C
• Probe Temperature - Maximum: 300°F, 149°C
• Probe Length / Width: 4.5" / 0.38"
• Wetted Materials

  • Temperature Probe: 300 Stainless Steel
  • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark, NACE, CRN

• Adjustable Set Point Range

  • Increasing

    • psid  50 - 375
    • kPa    344.7 - 2585.5
    • bar    3.45 - 25.9
  • Decreasing

    • psid  16 - 341
    • kPa    110.3 - 2351.1
    • bar    1.1 - 23.5
• Deadband - Approximate: 34 psi, 234.4 kPa, 2.34 bar
• System Pressure - Maximum: 3000 psig, 20,684.3 kPa, 207 bar
• Proof Pressure

  • Both Ports: 5000 psig, 34,473.8 kPa, 345 bar
  • High: 5000 psig, 34,473.8 kPa, 345 bar
  • Low: 3000 psig, 20,684.3 kPa, 207 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT Hi Side, 1/4" FNPT Low Side, 300 Stainless Steel
  • Diaphragm: Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark

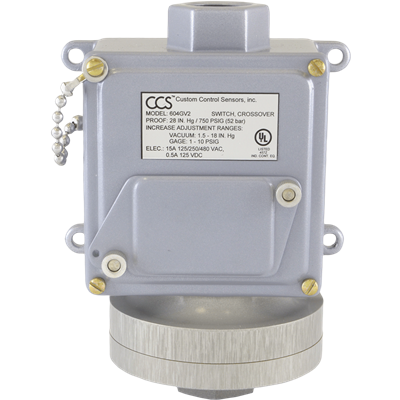

• Adjustable Set Point Range - VACUUM

  • Increasing

    • Inches Hg  3.5 - 28.5
    • mm Hg         89 - 724
  • Decreasing

    • Inches Hg  1 - 26
    • mm Hg        25 - 660
• Deadband - Approximate: 2.5 Inches Hg, 64 mm Hg
• System Pressure - Maximum: 150 psig, 1034.21 kPa, 10.3 bar
• Proof Pressure: 250 psig, 1723.69 kPa, 17.2 bar
• Wetted Materials

  • Pressure Port: 1/4" FNPT Aluminum
  • Diaphragm: Polyimide
  • O-Ring: Buna N
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark

• Adjustable Set Point Range

  • Increasing

    • psig   3 - 15
    • kPa    20.7 - 103
    • bar    0.21 - 1
  • Decreasing

    • psig   1 - 13
    • kPa    6.9 - 89.6
    • bar    0.07 - 0.9
• Deadband - Approximate: 2 psi, 13.89 kPa, 0.14 bar
• System Pressure - Maximum: 500 psi, 3447.38 kPa, 34.5 bar
• Proof Pressure: 750 psi, 5171.07 kPa, 51.7 bar
• Wetted Materials

  • Pressure Port: 1" MNPT 316 Stainless Steel - Flush Mount
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark, NACE, CRN

• Process Connection: 1" MNPT
• Insertion 'U' Length: 2"
• Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
• Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
• Temperature Ranges

  • Sensor: -55°C to 200°C (-58°F to 392°F)
  • Electronics: -55°C to 65°C (-67°F to 149°F)
• Local Enclosure: Aluminum Flameproof, 1" FNPT

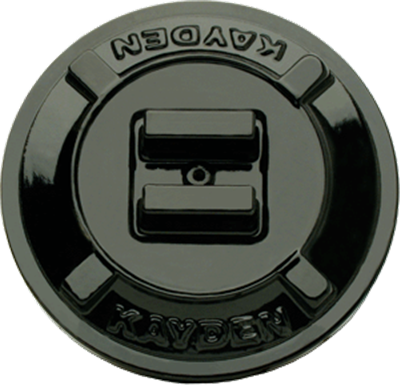

• Cover: Flameproof Blind Cover
• Remote Electronics Enclosure and Cover: Not Required
• Wetted Materials

  • Standard: 316/316L Stainless Steel
• Outputs/Communications

  • Two Independent Relays (SPDT)
  • 4-20 mA (Thermal Signal, Scalable)
  • Modbus Communication via RS-485
  • RCMS (Remote Control & Monitoring Software)
• Electronics - Standard Features

  • Automated Redundant Self-Test Diagnostics
  • Display Panel Lock-Out
  • Easy Set-up

    • No Mechanical Jumpers or Trim Pots
    • Intelligent Push Button Interface
    • Constant Display of Operation (Flow/Level)
  • Start-Up Bypass Timer
• c CSA us (UL Standards), CRN (Canada-wide), Single Seal, NACE, NEMA 4X

• Process Connection: 3/4" MNPT
• Insertion 'U' Length: 1.2"
• Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
• Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
• Temperature Ranges

  • Sensor: -55°C to 200°C (-58°F to 392°F)
  • Electronics: -55°C to 65°C (-67°F to 149°F)
• Local Enclosure: Aluminum Flameproof, 1" FNPT
• Cover: Flameproof Glass Lens Cover
• Remote Electronics Enclosure and Cover: Not Required
• Wetted Materials

  • Standard: 316/316L Stainless Steel
• Outputs/Communications

  • Two Independent Relays (SPDT)
  • 4-20 mA (Thermal Signal, Scalable)
  • Modbus Communication via RS-485
  • RCMS (Remote Control & Monitoring Software)
• Electronics - Standard Features

  • Automated Redundant Self-Test Diagnostics
  • Display Panel Lock-Out
  • Easy Set-up

    • No Mechanical Jumpers or Trim Pots
    • Intelligent Push Button Interface
    • Constant Display of Operation (Flow/Level)
  • Start-Up Bypass Timer
• c CSA us (UL Standards), Single Seal, NACE, NEMA 4X

• Process Connection: 3/4" MNPT
• Insertion 'U' Length: 3"
• Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
• Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
• Temperature Ranges

  • Sensor: -55°C to 200°C (-58°F to 392°F)
  • Electronics: -55°C to 65°C (-67°F to 149°F)
• Local Enclosure: Aluminum Flameproof, 1" FNPT
• Cover: Flameproof Glass Lens Cover
• Remote Electronics Enclosure and Cover: Not Required
• Wetted Materials

  • Standard: 316/316L Stainless Steel
• Outputs/Communications

  • Two Independent Relays (SPDT)
  • 4-20 mA (Thermal Signal, Scalable)
  • Modbus Communication via RS-485
  • RCMS (Remote Control & Monitoring Software)
• Electronics - Standard Features

  • Automated Redundant Self-Test Diagnostics
  • Display Panel Lock-Out
  • Easy Set-up

    • No Mechanical Jumpers or Trim Pots
    • Intelligent Push Button Interface
    • Constant Display of Operation (Flow/Level)
  • Start-Up Bypass Timer
• c CSA us (UL Standards), Single Seal, NACE, NEMA 4X

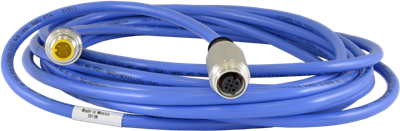

• Process Cable

  • Analog/Discrete Circuits
• Connector

  • "minifast" Series
  • Female Receptacle
  • 316 Stainless Steel Housing
  • 4 Contacts / 3 x #18 AWG Wires
  • (14.5mm) = 1/2"-14 MNPT Threads
• Wires

  • 105 C, 300 V
  • (3) x # 18 AWG Circuits
  • (1) x # 20 AWG Ground wire
  • (1) Shielded Twisted Pair, (1) Ground, (1) Drain
  • Interlocking Aluminum Armor
  • Black PVC Jacket
• Length of Wires

  • 20 Meters
• Protection Class

  • IEC67, NEMA 1,3,4,6P
• Approvals

  • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
  • CSA: ACIC, 90C, 300V
• CS16806:  Custom Label, Custom packaging

• IM: Interface Module
• 1: Isolation Switch Relay
• 2: Number of Inputs
• 2: Number of Non-Hazardous Area Outputs, Reflecting Hazardous Area Input Status
• EX: Intrinsically Safe Associated Apparatus
• R: Relay Switch
• 24VDC: Supply Voltage (10-30 VDC)

• Adjustable Set Point Range

  • Increasing

    • °F   80° to 205°
    • °C   27° to 96°
  • Decreasing

    • °F   60° to 198°
    • °C   16° to 92°
• Deadband - Approximate:

  • At Bottom of Range: 20°F, 11°C
  • At Top of Range: 5°F, 4°C
• Probe Temperature - Maximum: 300°F, 149°C
• Probe Length / Width: 4.5" / 0.38"
• Wetted Materials

  • Temperature Probe: 300 Stainless Steel
  • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark, NACE

• PT-500: Submersible Liquid Level Transducer

  • Cable Type: Blue Polyurethane (with vent tube)
• 5-PSIG: Pressure Range: 0 to 5 PSI, Gauge Pressure
• L1: Output: 4-20 mA
• E0: 1/2” NPTM fitting for conduit, with pigtail
• P39: Process Connection: 1-1/2” Tri-Clover with Protective Sensor Cage
• 20: Cable Length in Feet
• N0: ±0.25% Accuracy
• AC2: Gore Patch Filter
• Supply Voltage: 10-28 VDC
• Temperature Range

  • Compensated: -17°C to +54°C (+0°F to +130°F)
• Materials of Construction

  • Housing: 316L Stainless Steel
• Certification

  • 4-20 mA Output Only
  • CSA Intrinsically Safe

    • Class 1, Division 1; Groups C & D
    • Ex ia IIB T4
  • Class 1, Zone 0, AEx ia IIB T4
  • Ambient: -40 - 85ºC
  • Single Seal

• Adjustable Set Point Range

  • Increasing

    • psig   50 - 375
    • kPa    344.8 - 2585.5
    • bar     3.5 - 25.9
  • Decreasing

    • psig   16 - 341
    • kPa     110.4 - 2351
    • bar      1.1 - 23.5
• Deadband - Approximate: 34 PSI, 234.42 kPa, 2.3 bar
• System Pressure - Maximum: 3000 psig, 20,684.27 kPa, 207 bar
• Proof Pressure: 5000 psig, 34,473.78 kPa, 345 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CRN, CE Mark, NACE

• 208: Model 20 Pneumatic Precision Booster
• 1: Ratio 1:1
• 3: Pipe Size: 3/8" NPT
• Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
• Ambient Temperature: -40°F to +200° (-40°C to +93.3°C)
• Material of Construction

  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Nitrile on Dacron Fabric

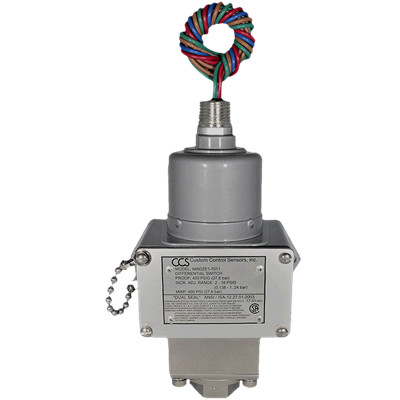

• Adjustable Set Point Range

  • Increasing

    • psid  9 - 75
    • kPa   62.1 - 517.1
    • bar    0.62 - 5.2
  • Decreasing

    • psid  3 - 69
    • kPa   20.7 - 475.7
    • bar    0.21 - 4.76
• Deadband - Approximate: 6 psig, 475 kPa, 4.76 bar
• System Pressure - Maximum: 400 psig, 2757.90 kPa, 28 bar
• Proof Pressure

  • Both Ports: 750 psig, 5171.07 kPa, 52 bar
  • High: 750 psig, 5171.07 kPa, 52 bar
  • Low: 400 psig, 2757 kPa, 28 bar
• Wetted Materials

  • Pressure Port: 1/4" FNPT 300 Stainless Steel
  • Diaphragm: Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark, NACE

• IM: Interface Module
• 33: Analog Input Repeaters/Supplies
• 2: Number of Hazardous Area Inputs
• 2: Number of Non-Hazardous Area Outputs
• EX: Intrinsically Safe Associated Apparatus
• HI: HART Compatible
• 24VDC: Supply Voltage (19-29 VDC)
• Approvals: ATEX, IECEx, UL, cFMus, TR CU, TIIS, CCOE, Kosha
• Input Circuits: 0/4...20mA
• Output Circuits: 0/4...20mA
• SIL2
• Removable terminal blocks, screwable with 2mm test socket
• Complete galvanic isolation
• Installation in Zone 2
• Supply of 2-wire measuring transducers with HART communication as well as connection to active 2-wire and passive 3-wire transmitters
[/li]

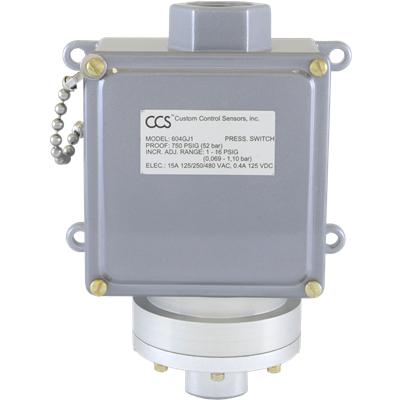

• Adjustable Set Point Range

  • Increasing

    • psig   1.4 - 16
    • kPa    9.7 - 110.3
    • bar    0.9 - 1.1
  • Decreasing

    • psig   0.4 - 15
    • kPa    2.8 - 103.4
    • bar    0.03 - 1.03
• Deadband - Approximate: 1 psi, 6.9 kPa, 0.07 bar
• System Pressure - Maximum: 500 psig, 3447.38 kPa, 35 bar
• Proof Pressure: 750 psig, 5171.07 kPa, 52 bar
• Wetted Materials

  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: 316 Stainless Steel
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • Dual Seal - ANSI/ISA - 12.27.01-2003
• CE Mark, NACE

• Adjustable Set Point Range

  • Increasing

    • °F    20° to 120°
    • °C   -7° to 49°
  • Decreasing

    • °F    0° to 113°
    • °C   -18° to 45°
• Deadband - Approximate

  • At Bottom of Range: 20°F, 11°C
  • At Top of Range: 5°F, 4°C
• Probe

  • Temperature - Maximum: 200°F, 93°C
  • Length: 4.5"
  • Diameter: 0.38"
• Wetted Materials

  • Temperature Probe: 300 Stainless Steel
  • Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark, NACE, CRN

• Adjustable Set Point Range

  • Increasing

    • °F   385° to 565°
    • °C   196° to 296°
  • Decreasing

    • °F   360° to 555°
    • °C   182° to 291°
• Deadband - Approximate:

  • At Bottom of Range: 25°F, 14°C
  • At Top of Range: 10°F, 5°C
• Probe Temperature - Maximum: 650°F, 343°C
• Probe Length / Width: 4.5" / 0.38"
• Wetted Materials

  • Temperature Probe: 300 Stainless Steel
  • Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark, NACE

• Adjustable Set Point Range

  • Increasing

    • psid  1.2 - 18
    • kPa   8.3 - 124.1
    • bar    0.083 - 1.24
  • Decreasing

    • psid  0.4 - 17.2
    • kPa    2.8 - 118.5
    • bar    0.028 - 1.19
• Deadband - Approximate: 0.8 psi, 5.51 kPa, 0.055 bar
• System Pressure - Maximum: 400 psig, 2757.90 kPa, 28 bar
• Proof Pressure

  • Both Ports: 750 psig, 5171.07 kPa, 52 bar
  • High: 750 psig, 5171.07 kPa, 52 bar
  • Low: 400 psig, 2757.90 kPa, 28 bar
• Wetted Materials

  • Pressure Port: 1/4" FNPT 300 Stainless Steel
  • Diaphragm: Polyimide
  • O-Ring: Viton
• Relay: SPDT
• UL, CSA

  • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
• CE Mark
