6900GZE16 - 6900GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 18 to 150 psig, 124.2 to 1034.2 kPa, 1.2 to 10.3 bar
- Decreasing: 6 to 138 psig, 41.4 to 951.4 kPa, 0.41 to 9.5 bar
Deadband: Approximately 12 psi, 82.74 kPa, 0.8 bar
System Pressure (Maximum): 1500 psig, 10342.13 kPa, 103 bar
Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

50+ In Stock

6900GZE18 - 6900GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 45 to 375 psig, 310.3 to 2585.5 kPa, 3.1 to 25.9 bar
- Decreasing: 15 to 345 psig, 103.5 to 2378.6 kPa, 1.0 to 23.8 bar
Deadband: Approximately 30 psi, 206.84 kPa, 2.0 bar
System Pressure (Maximum): 1500 psig, 10342.13 kPa, 103 bar
Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

50+ In Stock

6900GZE14 - 6900GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 9 to 75 psig, 62.1 to 517.1 kPa, 0.6 to 5.1 bar
- Decreasing: 3 to 69 psig, 20.7 to 475.7 kPa, 0.21 to 4.8 bar
Deadband: Approximately 6 psi, 41.37 kPa, 0.41 bar
System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
Proof Pressure: 750 psi, 5171.07 kPa, 51.7 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CE Mark, NACE

50+ In Stock

6900GZE12 - 6900GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
- Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CE Mark, NACE

25+ In Stock

6900GZE22 - 6900GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 700 to 2200 psig, 4826.4 to 15,168.5 kPa, 48.3 to 151.68 bar
- Decreasing: 520 to 2020 psig, 3585.3 to 13927 kPa, 35.9 to 139 bar
Deadband: Approximately 180 psi, 1241.06 kPa, 12.4 bar
System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
Proof Pressure: 4500 psig, 31026.41 kPa, 310 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

50+ In Stock

M10-1G00 - Kayden CLASSIC® Spare Glass Lens Cover, for CLASSIC® 800 Series Local Electronics Enclosure, M10-1G00 View Product Series

Kayden Glass Lens Cover, CLASSIC® Series

Kayden Instruments

View Description

Glass Lens Cover, for Integral/Local Electronics Enclosure
Area Classifications
- Flameproof (Hazardous Locations) T3
- Class I, Groups B, C & D; Ex d IIb + H₂
- AEx d IIB + H₂ (Class I, Zone 1 Group IIB + H₂)
Standard Features
- Epoxy Coated
- For the Kayden CLASSIC® 800 Series Switches

In Stock 1 day

$220.77USD

L10-800-C-E - Kayden CLASSIC® 800 Series Spare Electronics Module, L10-800-C-E View Product Series

Kayden CLASSIC® 800 Series Thermal Switch/Transmitter Electronics Module

Kayden Instruments

View Description

The CLASSIC 800 Series Electronics Module is for use in the following Models: 810, 812, 814, 816, 828, 830 & 832
Input Power
- 12-24 Vdc
- 115-230 Vac, 50 to 60 Hz
Outputs
- Dual SPDT Relay Contacts Rated @ 5 Amps Resistive 230 Vac or 24 Vdc Maximum
- Modbus via RS-485
Advanced Diagnostics
- Any open or shorted connection will result in a FAULT indication that also deactivates all relays and disables the heater circuitry
- An internal watchdog circuit ensures that the microprocessor code is performing as expected, and a secondary external watchdog circuit ensures that the microprocessor itself is functioning. In the event of a malfunction both circuits force the contacts open, illuminate the Fault LED and force the heater off. This prevents the possibility of a “runaway” heater or a high thermal offset.
Intelligent User Controls
The Kayden CLASSIC 800 series Display Panel features bright LED indicators for easy viewing even in direct sunlight.
An adjustable power-on Start-up Bypass Timer is accessible from the Display Panel for low flow alarm pump protection applications. This makes it possible to disable a pump on low flow and have it automatically restart after a predetermined time in the event of a power interruption.
Four adjustable delay timers allow the introduction of repeatable time delay into the (set point) relay trip function. For example, in a pump protection application this function will shut down the pump after the switch sensor has gone “dry” for the pre-set time (delay) limit.
The Kayden RCM Software includes the option of locking the CLASSIC 800 Series Display Panel to eliminate field adjustments or tampering.
Modbus allows multiple Kayden units to be connected to the same communications bus (via RS485) and monitored simultaneously.

Standard Features

Microprocessor Based Electronics
Intelligent User Interface
Continuous Self-Test Diagnostics of Electronics & Sensor
Temperature Compensation
Variable Heater Power
Dual Independent Relays
Relays are Factory Set to Monitor Flow
Adjustable Power-on Start-up Bypass Timer
Adjustable Set Point Deadbands
4 Adjustable Independent Switch Point Timers
Display Panel Lock-Out (controlled via the Kayden RCM Software)
No Mechanical Jumpers or Trim-pots
Process Temperature via Modbus and/or One or Both Alarm Relays

In Stock 2 - 4 weeks

$808.75USD

P42-RA3D-0035-AH0AM - Kayden CLASSIC 830 Spare Sensor, In-Line Threaded, 3/4" FNPT, P42 Series View Product Series

KAYDEN CLASSIC 830 Series Thermal Flow, Level, Interface Sensor, 3/4"NPT, 3.5" Body, 1/4" Bleed Port

Kayden Instruments

View Description

Process Connections: 3/4" FNPT
Sensor Assembly Body Length: 3.5", 8.8 cm
Sensor Mounting Orientation: Horizontal
Temperature Range (Sensor): -55°C to 200°C, -67°F to 392°F
Bleed Port: 1/4" Threaded
Wetted Materials:
- Standard: 316 Stainless Steel
Sensor Connection: Molex - 8 Pin

In Stock 3 - 5 weeks

Non-Cancellable / Non-Refundable

$1,177.44USD

6900GZE20 - 6900GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 bar
- Decreasing: 225 to 925 psig, 1551.4 to 6377.6 kPa, 15.5 to 63.7 bar
Deadband: Approximately 75 psi, 517.11 kPa, 5.1 bar
System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

50+ In Stock

BI 5-EM18-Y1X-H1141 - Proximity Sensor View Product Series

TURCK 2-Wire Inductive Sensor, 18mm Housing, 5mm Sensing Range, SST, Embeddable, NAMUR, NCNR

Turck

View Description

B: Embeddable
I: Inductive
5: Rated Operating Distance (mm)
E: Stainless Steel
M: partial threading, chrome plated brass
18: Housing Diameter or Height (mm)
Y1: NAMUR output, requires switching amplifier, ATEX approved
X: 1 LED
H1: eurofast ®, M12x1, metal or plastic, male
1: Straight Connector
4: Number of Pins
1: non-standard wiring

1 In Stock

Non-Cancellable / Non-Refundable

V-506-SCJ - Hard Seat Hand Valve View Product Series

PGI V-506 Hand-Valve, 1/2" NPT, SST, NACE

Parker PGI

View Description

V-506: 1/2" MNPT x 1/2" FNPT
S: Stainless Steel Body and Bonnet
C: Seat Material - Carbide Ball
J: Stem Packing - PTFE Packed Style (Low Temp)
- 10,000 psi Max. @ 93° to -40°C Min.
- 8,000 psi Max. @ 232°C Max.

12 In Stock

$106.71USD

91052 - Model 91 High Pressure Selector Relay View Product Series

FAIRCHILD Model 91 High Pressure Selector Relay, 1/4" NPT

Fairchild

View Description

Model: 91 High Pressure Selector
Maximum Signal Pressure: 200 psig, 14.0 bar, 1400 kPa
Switching Differential (Minimum) : Less than 0.1 psig, 0.007 bar, 0.7 kPa
Differential between Signals (Maximum): 100 psig, 7.0 bar, 700 kPa
Pipe Size: 1/4" NPT
Material of Construction:
- Body: Aluminum Alloy
- Trim: Brass
- Diaphragm: Dupont Fairprene-coated fabric

50+ In Stock

$420.20USD

90052 - Model 90 Low Pressure Selector Relay View Product Series

FAIRCHILD Model 90 Low Pressure Selector Relay, 1/4" NPT

Fairchild

View Description

Models: 90 Low Pressure Selector
Maximum Signal Pressure: 200 psig, 14.0 bar, 1400 kPa
Switching Differential (Minimum) : Less than 0.1 psig, 0.007 bar, 0.7 kPa
Differential between Signals (Maximum): 100 psig, 7.0 bar, 700 kPa
Pipe Size: 1/4" NPT
Material of Construction:
- Body: Aluminum Alloy
- Trim: Brass
- Diaphragm: Dupont Fairprene-Coated Fabric

25+ In Stock

$560.75USD

810-RAD-0120-C1B0A-3E - Kayden CLASSIC 810 Thermal Flow, Level, Interface Switch & Transmitter View Product Series

KAYDEN CLASSIC Thermal Flow, Level, Interface Switch, Modbus, 3/4" NPT, 12"U, SST, Blind, CRN

Kayden Instruments

View Description

Process Connections: 3/4" MNPT
Insertion 'U' Length: 12"
Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
Temperature Ranges:
- Sensor: -55°C to 200°C (-58°F to 392°F)
- Electronics: -55°C to 65°C (-67°F to 149°F)
Local Enclosure: Aluminum Flameproof, 1" FNPT
Cover: Flameproof Blind Cover
Remote Electronics Enclosure and Cover: Not Required
Wetted Materials:
- Standard: 316/316L Stainless Steel
Outputs/Communications:
- Two Independent Relays (SPDT)
- 4-20 mA (Thermal Signal, Scalable)
- Modbus Communication via RS-485
- RCMS (Remote Control & Monitoring Software) Downloadable from Kayden.com
Electronics - Standard Features:
- Automated Redundant Self-Test Diagnostics
- Display Panel Lock-Out
- Easy Set-up:
  - No Mechanical Jumpers or Trim Pots
  - Intelligent Push Button Interface
  - Constant Display of Operation (Flow/Level)
- Start-Up Bypass Timer
c CSA us (UL Standards), CRN (Canada-wide), Single Seal, NACE, NEMA 4X

In Stock 2 - 5 days

$1,652.83USD

646GZE2-7011 - 646GZE-7011 Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 10 to 75 psig, 69.0 to 517.1 kPa, 0.7 to 5.2 bar
- Decreasing: 3 to 68 psig, 20.7 to 468.8 kPa, 0.2 to 4.7 bar
Deadband: Approximately 7 psi, 48.26 kPa, 0.5 bar
System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

25+ In Stock

646GZE3-7011 - 646GZE-7011 Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 50 to 375 psig, 344.8 to 2585.5 kPa, 3.5 to 25.9 bar
- Decreasing: 16 to 341 psig, 110.4 to 2351 kPa, 1.1 to 23.5 bar
Deadband: Approximately 34 PSI, 234.42 kPa, 2.3 bar
System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

25+ In Stock

30252N - Model 30 Compact Precision Pressure Regulator View Product Series

FAIRCHILD Model 30 Midget Precision Regulator, 2-100 psig, 15-700 kPa, 1/4" NPT, Non-Relieving

Fairchild

View Description

Set Point Range: 2-100 psig, 0.1-7 bar, 15-700 kPa
Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
Port Size: 1/4" NPT
Options: Non-Relieving
Materials of Construction:
- Body & Housing: Aluminum
- Trim: Brass
- Elastomer: Nitrile on Dacron

10 In Stock

$236.22USD

646GZE2 - 646GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port, Polyimide, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 8 to 75 psig, 55.2 to 517.1 kPa, 0.6 to 5.2 bar
- Decreasing: 3 to 70 psig, 20.7 to 482.6 kPa, 0.2 to 4.8 bar
Deadband: Approximately 5 psi, 34.47 kPa, 0.34 bar
System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: Polymide
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

6 In Stock

6900TUE14 - 6900TUE Series Temperature Switch View Product Series

CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: +80°F to +205°F, +27°C to +96°C
- Decreasing: +60°F to +198°F, +16°C to +92°C
Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
Probe Temperature (Maximum): +300°F, +149°C
Probe Length / Width: 4.5" / 0.38"
Wetted Materials:
- Temperature Probe: 300 Stainless Steel
- Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, NACE

25+ In Stock

V-572-SCJ - Hard Seat Block & Bleed Valve View Product Series

PGI Hard Seat Block & Bleed Valve, 3/4 MNPT x 1/2" FNPT, SST, NACE

Parker PGI

View Description

V-572: 3/4" MNPT x 1/2" FNPT, Hard Seat
S: Stainless Steel Body and Bonnet
C: Seat Material - Carbide Ball
J: Stem Packing - PTFE Packed Style (Low Temp)
Meets the requirements of NACE MR0175/ISO 15156-3 as shown on Catalog Sheet

5 In Stock

$314.96USD

ATD19T11 - ATD Series Star Insert View Product Series

A-T CONTROLS Star Insert, 0.748 x 0.433

A-T Controls

View Description

Star Insert: "ATD" Style
Dimensions:
- A 0.748 in. Outer
- B 0.433 in. Inner

9 In Stock

Non-Cancellable / Non-Refundable

$8.83USD

IM1-22EX-R/24VDC - IM Series Interface Module View Product Series

TURCK Isolation Switch Relay, 2-Channel, 24 VDC

Turck

View Description

IM: Interface Module
1: Isolation Switch Relay
2: Number of Inputs
2: Number of Non-Hazardous Area Outputs, Reflecting Hazardous Area Input Status
EX: Intrinsically Safe Associated Apparatus
R: Relay Switch
24VDC: Supply Voltage (10-30 VDC)

2 In Stock

$306.13USD

6900TUE12 - 6900TUE Series Temperature Switch View Product Series

CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: +20°F to +120°F, -7°C to +49°C
- Decreasing: +0°F to +113°F, -18°C to +45°C
Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
Probe Temperature (Maximum): +200°F, +93°C
Probe Length / Width: 4.5" / 0.38"
Wetted Materials:
- Temperature Probe: 300 Stainless Steel
- Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, NACE, CRN

11 In Stock

6900TUE18 - 6900TUE Series Temperature Switch View Product Series

CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: +280°F to +405°F, +138°C to +207°C
- Decreasing: +260°F to +398°F, +127°C to +203°C
Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
Probe Temperature (Maximum): +500°F, +260°C
Probe Length / Width: 4.5" / 0.38"
Wetted Materials:
- Temperature Probe: 300 Stainless Steel
- Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, NACE, CRN

11 In Stock

BIM-UNT-AN6X - Proximity Sensor View Product Series

TURCK Proximity Sensor, Inductive Magnetic Cylinder Position, NO, NPN, 10-30 VDC, NCNR

Turck

View Description

B: Embeddable
IM: inductive magnet operated
UNT: Plastic, groove mount or strap-on; active face on end
A: Normally Open (N.O.)
N: NPN Transistor (current sinking)
6: 10-30 VDC, polarity protected, pulsed SCP
X: 1 LED

25+ In Stock

Non-Cancellable / Non-Refundable

$103.76USD

HL02-R1T185L483-S4D03(1/2)08-SC-ZXU476T82-D10-3I-85-00-A-U-S(-40-100)C,(Z1018) - Fixed-Element RTD Assemblies - Hazardous Location Explosion-Proof-Certified View Product Series

HL02-R1T185L483-S4D03(1/2)08-SC-ZXU4-76T82-D10-3I-85-00-A-U-S(-40-100)C,(Z1018)

Pyromation

View Description

HL02: Hazardous Location - CSA Explosion Proof RTD Assembly

RTD Specifications

R: 100 Ω Platinum
1: Tolerance Class B
T: Temperature Range -200° to 200°C
185: Temperature Coefficient 0.00385 Ω per °C
L: Single element
48: 1/4 Inch Diameter, SS Sheath
3: 3-Wire

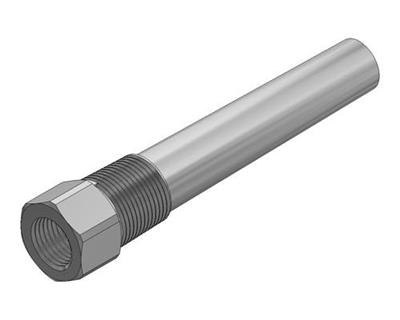

Thermowell

S: Well Type: Standard Duty Threaded (NPT)
4: Bore Size: 0.260 Dia Bore
D: Pipe Size: 3/4" NPT Pipe Size
03(1/2): Custom U-Dimension: 2.0". S-Dimension: 3.5"
08: 316 SS Material

Nipple Union Assembly

SC: Element Options: Self contained, spring-loaded
Z: Union/Nipple Assembly (Z special)
X: Explosion Proof
U: Union & Nipple 1/2" NPT
4: Extension E Length: 4"

Transmitter

T76T82-D10: (4-20mA) Dual Input HART, )4-20mA0 Temperature Transmitter
- cw Explosion Proof Enclosure, Digital Display, Glass Lid
- CSA,Explosion Proof Approved
- Class I Division 1, Groups A,B,C,D
- Aluminum XP Enclosure
- Type 4X
3I: Ch1: RTD 3-Wire. Ch2: Inactive
85: Sensor Input Channel 1: 100 Ohm Platinum (α = 0.003 85 °Cˉ¹)
00: No Second Channel
A: Ch 1 = Process Variable, Ch 2 = inactive
U: Upscale burnout
S:(-40 to 100) °C (on Display)

Special Options

(Z1018): Plated Steel Union
- Display Two Variables Process variable: Temperature in °C and 4-20mA

  Drive high 21 mA

3 In Stock

$1,164.93USD

646GZE7-7011 - 646GZE-7011 Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 950 to 2300 psig, 6550.1 to 15857.9 kPa, 65.5 to 158.6 bar
- Decreasing: 750 to 2100 psig, 5171.1 to 14478.9 kPa, 51.7 to 144.8 bar
Deadband: Approximately 200 psi, 1378.95 kPa, 13.8 bar
System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

14 In Stock

6900TE12 - 6900TE Series Temperature Switch View Product Series

CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt.

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: +20°F to +120°F, -7°C to +49°C
- Decreasing: +0°F to +113°F, -18°C to +45°C
Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
Probe Temperature (Maximum): +200°F, +93°C
Probe Length / Width: 4.5" / 0.38"
Wetted Materials:
- Temperature Probe: 300 Stainless Steel
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, NACE, CRN

14 In Stock

646GZEM7-7065 - 646GZE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT,TeflonLeads

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 950 to 2300 psig, 6550 to 15857.9 kPa, 65.5 to 158.6 bar
- Decreasing: 750 to 2100 psig, 5171 to 14478.98 kPa, 51.7 to 144.8 ba
Deadband: Approximately 200 psi, 1378.9 kPa, 13.8 bar
System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
Relay: DPDT
Wire: Teflon
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark, NACE

6 In Stock

$1,742.61USD

Does not ship to US

TCXI7850-401EN - Model TXI7850 Moisture Resistant I/P Pressure Transducer View Product Series

FAIRCHILD Model TXI7850 I/P Transducer, CSA, 4-20 mA, 3-15 psig, Tapped Exhaust, Natural Gas

Fairchild

View Description

T: Electro-Pneumatic Transducer
C: CSA (hazardous locations)
X: Explosion/Flame proof
I: Intrinsically Safe
78: Series model number
5: Moisture resistant (Piezo disc is coated to prevent moisture in air or gas shorting out circuit)
0: Temperature Range: -40°F to +160°F, -40°C to 71.2°C
4: Input: 4-20 mA
01: Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
E: Tapped Exhaust
N: Natural Gas Media approved only for CSA and FM
- Includes secondary seal hex nipple with 10ft cable
Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
Conduit Fitting: 1/2" NPT
Materials of Construction:
- Body & Housing: Chromate Treated Aluminum
- Trim: Zinc Plated Steel, Stainless Steel
- Orifice: Aluminum, Sapphire
- Elastomers: Nitrile
- Finish: Epoxy Powder Coating

25+ In Stock

$1,694.77USD

6900GE14 - 6900GE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 6 to 75 psig, 41.4 to 517.1 kPa, 0.41 to 5.1 bar
- Decreasing: 2 to 71 psig, 13.8 to 489.5 kPa, 0.14 to 4.9 bar
Deadband: Approximately 4 psi, 27.58 kPa, 0.28 bar
System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, CRN

25+ In Stock

6900TE16 - 6900TE Series Temperature Switch View Product Series

CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Direct Mt.

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: +185°F to +315°F, +85°C to +157°C
- Decreasing: +165°F to +308°F, +74°C to +153°C
Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
Probe Temperature (Maximum): +400°F, +204°C
Probe Length / Width: 4.5" / 0.38"
Wetted Materials:
- Temperature Probe: 300 Stainless Steel
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, NACE, CRN

24 In Stock

6900TUE16 - 6900TUE Series Temperature Switch View Product Series

CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 5` Capillary

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: +185°F to +315°F, +85°C to +157°C
- Decreasing: +165°F to +308°F, +74°C to +153°C
Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
Probe Temperature (Maximum): +400°F, +204°C
Probe Length / Width: 4.5" / 0.38"
Wetted Materials:
- Temperature Probe: 300 Stainless Steel
- Capillary Tube: 5' Stainless Steel Graphite & Lubricated Glass
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, NACE, CRN

25+ In Stock

646DZE2-7011 - 646DZE-7011 Series Pressure Switch View Product Series

CCS DUAL-SNAP Differential Pressure Switch, Haz. Area, 1/4" NPT 300 SST Port & Diaphragm, Viton

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 9 to 75 psid, 62.1 to 517.1 kPa, 0.62 to 5.2 bar
- Decreasing: 3 to 69 psid, 20.7 to 475.7 kPa, 0.21 to 4.76 bar
Deadband: Approximately 6 psig, 475 kPa, 4.76 bar
System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
Proof Pressure:
- Both Ports: 750 psig, 5171.07 kPa, 52 bar
- High: 750 psig, 5171.07 kPa, 52 bar
- Low: 400 psig, 2757 kPa, 28 bar
Wetted Materials:
- Pressure Port: 1/4" FNPT 300 Stainless Steel
- Diaphragm: Stainless Steel
- O-Ring: Viton
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CE Mark, NACE

25+ In Stock

$1,368.03USD

Does not ship to US

646GE3 - 646GE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 50 to 375 psig, 344.8 to 2585.5 kPa, 3.5 to 25.9 bar
- Decreasing: 22 to 347 psig, 151.7 to 2392.4 kPa, 1.5 to 23.9 bar
Deadband: Approximately 28 psig, 193.05 kPa, 1.9 bar
System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark

1 In Stock

$862.47USD

TCXI7850-403EN - Model TXI7850 Moisture Resistant I/P Pressure Transducer View Product Series

FAIRCHILD Model TXI7850 I/P Transducer, CSA, 4-20 mA, 6-30 psig, Tapped Exhaust, Natural Gas

Fairchild

View Description

T: Electro-Pneumatic Transducer
C: CSA (hazardous locations)
X: Explosion/Flame proof
I: Intrinsically Safe
78: Series model number
5: Moisture resistant (Piezo disc is coated to prevent moisture in air or gas shorting out circuit)
0: Temperature Range: -40°F to +160°F, -40°C to 71.2°C
4: Input: 4-20 mA
03: Output Range: 6-30 psig, 0.4-2 bar, 40-200 kPa
E: Tapped Exhaust
N: Natural Gas Media approved only for CSA and FM
- Includes secondary seal hex nipple with 10ft cable
Supply Pressure: 35-120 psig, 2.4-8 bar, 240-800 kPa
Conduit Fitting: 1/2" NPT
Materials of Construction:
- Body & Housing: Chromate Treated Aluminum
- Trim: Zinc Plated Steel, Stainless Steel
- Orifice: Aluminum, Sapphire
- Elastomers: Nitrile
- Finish: Epoxy Powder Coating

25+ In Stock

$1,694.77USD

30222 - Model 30 Compact Precision Pressure Regulator View Product Series

FAIRCHILD Model 30 Midget Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT

Fairchild

View Description

Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
Port Size: 1/4" NPT
Materials of Construction:
- Body & Housing: Aluminum
- Trim: Brass
- Elastomer: Nitrile on Dacron

2 In Stock

$205.32USD

19021-1 - Mounting Kit for Model TX7800/7850 w/ NPT Port View Product Series

FAIRCHILD Mounting Kit, Model TX7800/7850 w/NPT Ports

Fairchild

View Description

Mounting Kit: Model TX7800/7850 with NPT Ports

15 In Stock

$41.95USD

810-RAD-0030-C1B0A-9E - Kayden CLASSIC 810 Thermal Flow, Level, Interface Switch & Transmitter View Product Series

KAYDEN CLASSIC Thermal Flow, Level, Interface Switch, Modbus, 3/4" NPT, 3"U, SST, Blind, FM

Kayden Instruments

View Description

Process Connections: 3/4" MNPT
Insertion 'U' Length: 3"
Adjustable Set Point Range: 0-254 feet/s, 0-77 meters/s
Input Power: 12-24 VDC & 115-230 VAC, 50-60 Hz
Temperature Ranges:
- Sensor: -55°C to 200°C (-58°F to 392°F)
- Electronics: -55°C to 65°C (-67°F to 149°F)
Local Enclosure: Aluminum Flameproof, 1" FNPT
Cover: Flameproof Blind Cover
Remote Electronics Enclosure and Cover: Not Required
Wetted Materials:
- Standard: 316 Stainless Steel
Outputs/Communications:
- Two Independent Relays (SPDT)
- 4-20 mA (Thermal Signal, Scalable)
- Modbus Communication via RS-485
- RCMS (Remote Control & Monitoring Software) Downloadable from Kayden.com
Electronics - Standard Features:
- Automated Redundant Self-Test Diagnostics
- Display Panel Lock-Out
- Easy Set-up:
  - No Mechanical Jumpers or Trim Pots
  - Intelligent Push Button Interface
  - Constant Display of Operation (Flow/Level)
- Start-Up Bypass Timer
FM, NACE, NEMA 4X

In Stock 2 - 5 days

$1,352.58USD

WK 4.21T-2-RS 4.21T/S90 - Turck Cordset View Product Series

TURCK eurofast Cordset, R.A. Female to Straight Male, 4-Pin, 2m, PVC/Blue, NCNR

Turck

View Description

Right Angle Female to Straight Male
4-Pin
2m Length
AWM PUR NAMUR Blue
Cut/Abrasion Immune

4 - 5 weeks

$51.51USD

88-TH-0100-XXX - 88 Series Manual Ball Valve View Product Series

A-T CONTROLS Series 88 Ball Valve, 3-Piece Threaded, 1", RTFE

A-T Controls

View Description

88: 3-Piece High Performance, Direct Mount, 2000/1500/1000 WOG, Full Port
- SST Body and Trim
TH: NPT Ends
0100: 1" Valve Size
X: Reinforced TFE Seats (RTFE)
XX: No Specials
Pyramidal Stem Packing: Yes
Maximum Pressure Rating: 2000 psi

2 In Stock

6900TUE16-7001 - 6900TUE Series Temperature Switch View Product Series

CCS DUAL-SNAP Temperature Switch, Haz. Area, 1/2" NPT 300 SST Fitting, 10` Capillary

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: +185°F to +315°F, +85°C to +157°C
- Decreasing: +165°F to +308°F, +74°C to +153°C
Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
Probe Temperature (Maximum): +400°F, +204°C
Probe Length / Width: 4.5" / 0.38"
Wetted Materials:
- Temperature Probe: 300 Stainless Steel
- Capillary Tube: 10' Stainless Steel Graphite & Lubricated Glass
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, NACE, CRN

22 - 24 weeks

6900PE38 - 6900PE Series Pressure Switch View Product Series

CCS DUAL-SNAP Piston Switch, Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 2000 to 6500 psig, 13789.6 to 44815.9 kPa, 138 to 448 bar
- Decreasing: 1500 to 6000 psig, 10342.2 to 41368.5 kPa, 103 to 414 bar
Deadband: Approximately 500 psi, 3447.38 kPa, 34.5 bar
System Pressure (Maximum): 10000 psig, 68947.57 kPa, 689 bar
Proof Pressure: 13000 psig, 89631.84 kPa, 896 bar
Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Piston: 400 Stainless Steel
- O-Ring: Buna N / Teflon
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, CRN

28 - 35 weeks

PT-405-L1-500-PSI-S-E60-4-P1-N0-M1-S10 - PT-405 Pressure Transducer View Product Series

APG PT-405 Transducer, 0-500 psi, 1/2" MNPT with Leads, 1/2" MNPT Process Connection, 4-20 mA

Automation Products Group

View Description

PT-405: Heavy Duty, Explosion Proof, Pressure Transducer
L1: 4-20mA Output
500 PSI: Pressure Range
S: Pressure Type - Sealed
E60: 1/2 in. NPTM with lying leads, Short can
4: Cable Length in Feet
P1: Process Connection - 1/2 - 18 NPTM
N0: Accuracy - ±0.25%
M1: Wetted Materials - 316L SS
S10: Temperature Range:
- Compensated: -10°C to +70°C (14°F to +158°F)
Certification: CSA/cCSAus, Single Seal, Max. Working Pressure: 30,000 psi Explosion Proof: Class I, Div.1, Groups C & D

3 - 5 weeks

$579.89USD

6900PE36 - 6900PE Series Pressure Switch View Product Series

CCS DUAL-SNAP Piston Switch, Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 500 to 3200 psig, 3447.4 to 22063.2 kPa, 34.5 to 221 bar
- Decreasing: 330 to 3030 psig, 2275.3 to 20891.1 kPa, 22.8 to 209 bar
Deadband: Approximately 170 psi, 1172.11 kPa, 11.7 bar
System Pressure (Maximum): 5000 psig, 34473.78 kPa, 345 bar
Proof Pressure: 7500 psig, 51710.68 kPa, 517 bar
Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Piston: 400 Stainless Steel
- O-Ring: Buna N / Teflon
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
CE Mark, CRN

28 - 35 weeks

646VE1 - 646VE Series Pressure Switch View Product Series

CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N

Custom Control Sensors

View Description

Adjustable Set Point Range - Vacuum:
- Increasing: 3.5 to 28.5 inches Hg, 89 to 724 mm Hg
- Decreasing: 1 to 26 inches Hg, 25 to 660 mm Hg
Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
Proof Pressure: 250 psig, 1723.69 kPa, 17.2 bar
Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark

9 - 11 weeks

$1,187.74USD

Does not ship to US

646GE1 - 646GE Series Pressure Switch View Product Series

CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N

Custom Control Sensors

View Description

Adjustable Set Point Range:
- Increasing: 1.2 to 16 psig, 8.3 to 110.3 kPa, 0.08 to 1.1 bar
- Decreasing: 0.4 to 15.2 psig, 2.8 to 104.8 kPa, 0.03 to 1.04 bar
Deadband: Approximately 0.8 psig, 5.51 kPa, 0.06 bar
System Pressure (Maximum): 500 psig, 3447.38 kPa, 35 bar
Proof Pressure: 750 psig, 5171.07 kPa, 52 bar
Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Diaphragm: Polyimide
- O-Ring: Buna N
Relay: SPDT
UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
CRN, CE Mark

5 - 7 weeks

$862.47USD

Does not ship to US

BI 5-EM18E-Y0X-H1141 - Proximity Sensor View Product Series

TURCK 2-Wire Inductive Sensor, 5mm Sensing Range, SST, Embeddable, NAMUR, NCNR

Turck

View Description

B: Embeddable (Shielded) Sensor
I: Inductive
5: Rated Operating Distance (mm)
E: Stainless Steel
M: partial threading, chrome plated brass
18: Housing Diameter or Height (mm)
E: Extended Barrel Length
Y0: NAMUR output, requires switching amplifier
X: 1 LED
H1: eurofast®, M12 x 1, metal or plastic, male
1: Straight connector
4: Number of Pins
1: Standard wiring

2 - 8 weeks
