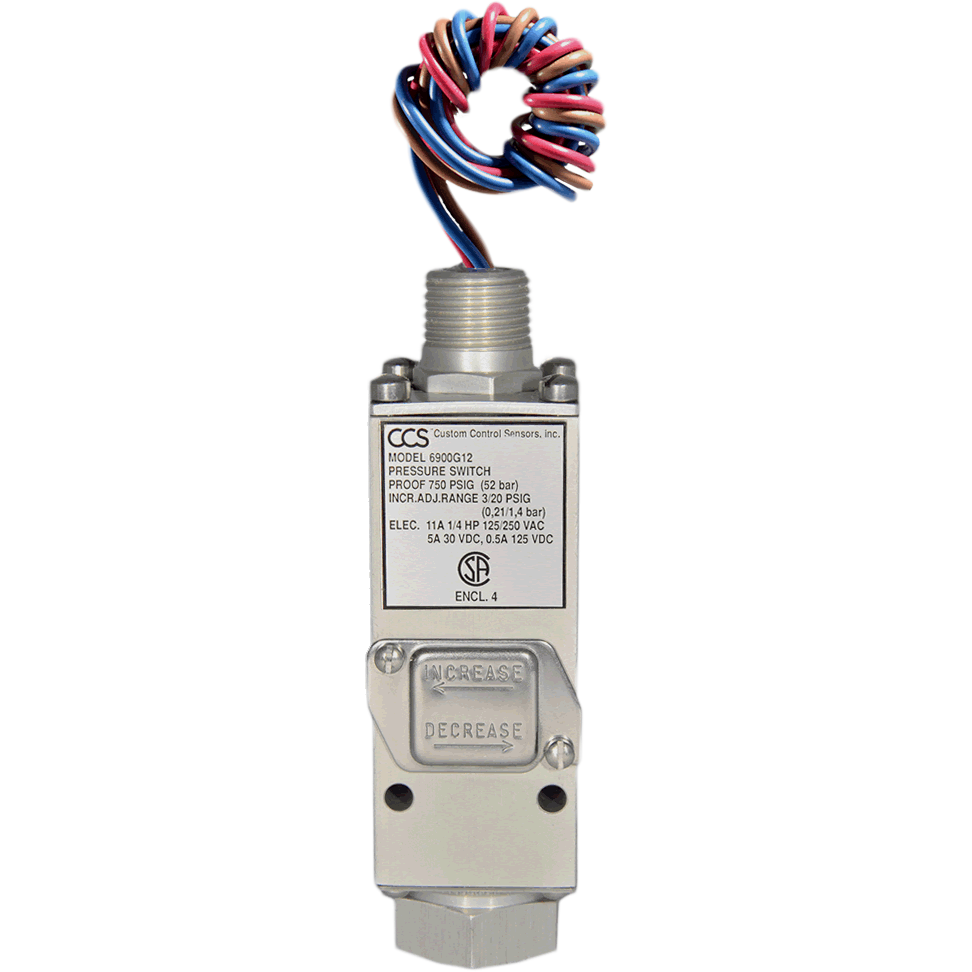

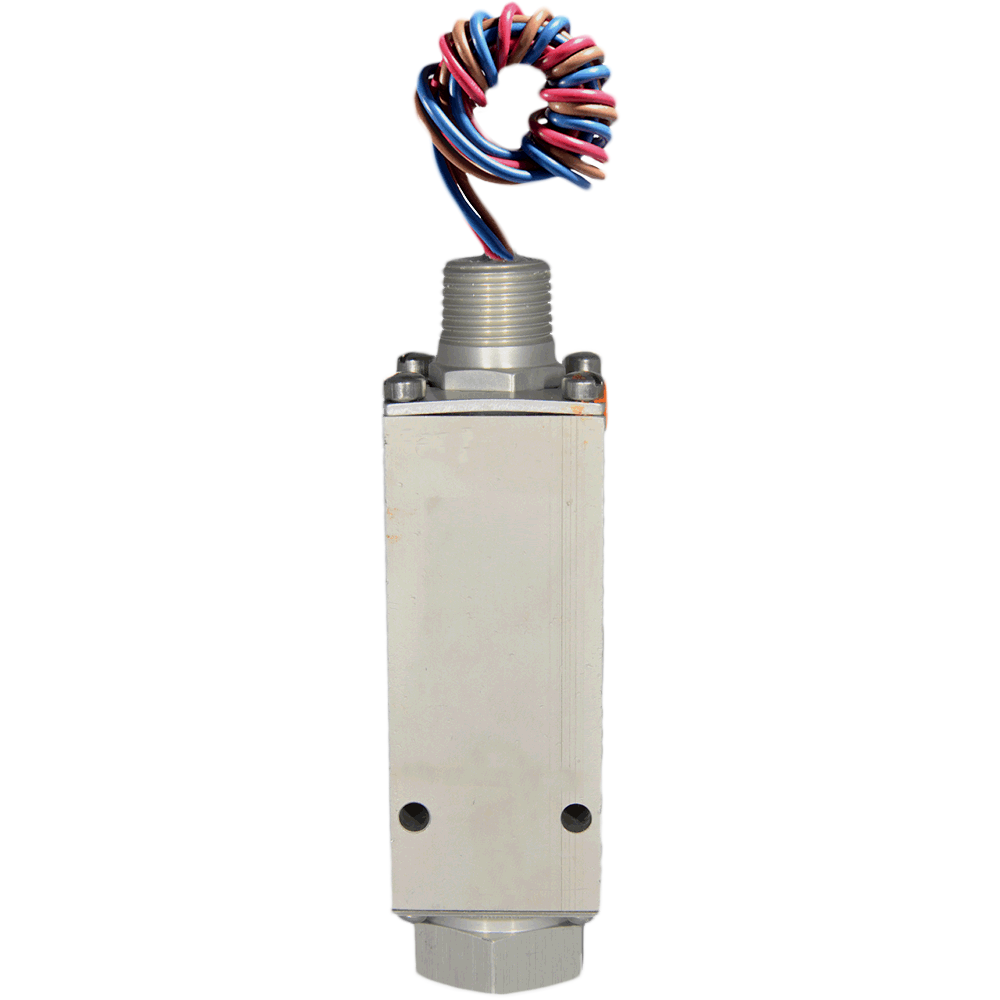

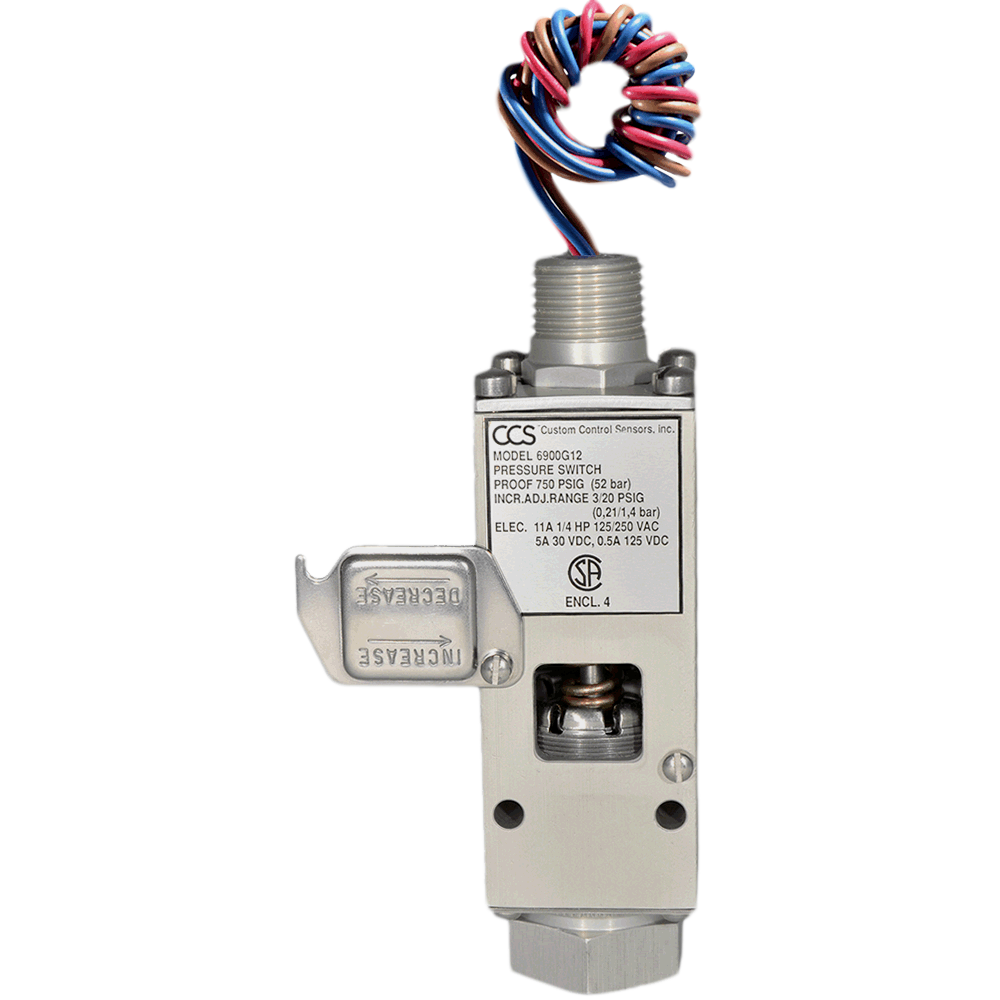

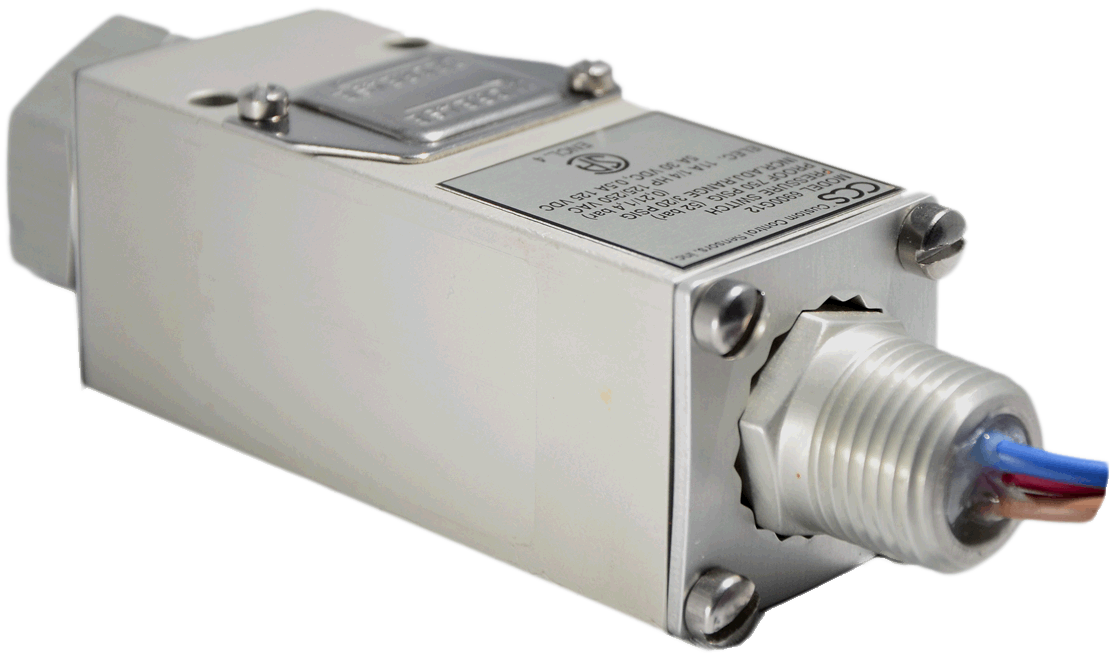

6900GZ Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.2 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.6 kPa, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 13.79 to 1930.0 kPa, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.8 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.7 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA, CE Mark, NACE, CRN
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.2 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.6 kPa, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 13.79 to 1930.0 kPa, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.8 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.7 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA, CE Mark, NACE, CRN
45 models matching criteria
6900GZ20
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
9 In Stock
$699.00USD
$9.99 Shipping
6900GZ22
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
7 In Stock
$254.00USD
$9.99 Shipping
6900GZ24
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
3 In Stock
$311.00USD
$9.99 Shipping
6900GZ18
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$699.00USD
$9.99 Shipping
available on backorder
6900GZ12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$752.00USD
$9.99 Shipping
available on backorder
6900GZ14
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$752.00USD
$9.99 Shipping
available on backorder
6900GZ16
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$752.00USD
$9.99 Shipping
available on backorder
6900GZF12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Ethylene Propylene O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
45 - 60 days
$823.00USD
$9.99 Shipping
available on backorder
6900GZ18-7008
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Gold Contacts, Viton
5 - 7 weeks
$847.00USD
$9.99 Shipping
available on backorder
6900GZM12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT
5 - 7 weeks
$933.00USD
$9.99 Shipping
available on backorder
6900GZM14
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$933.00USD
$9.99 Shipping
available on backorder
6900GZM16
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$933.00USD
$9.99 Shipping
available on backorder
6900GZM18
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$933.00USD
$9.99 Shipping
available on backorder
6900GZM20
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT
5 - 7 weeks
$933.00USD
$9.99 Shipping
available on backorder
6900GZM22
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT
5 - 7 weeks
$933.00USD
$9.99 Shipping
available on backorder
6900GZ14-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,182.00USD
$9.99 Shipping
available on backorder
6900GZ22-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,184.00USD
$9.99 Shipping
available on backorder
6900GZ12-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,199.00USD
$9.99 Shipping
available on backorder
6900GC18
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
49 - 54 days
$1,279.00USD
$9.99 Shipping
available on backorder
6900GC22
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule
5 - 7 weeks
$1,285.00USD
$9.99 Shipping
available on backorder
6900GC12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,303.00USD
$9.99 Shipping
available on backorder
6900GC20
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,318.00USD
$9.99 Shipping
available on backorder
6900GC16
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,327.00USD
$9.99 Shipping
available on backorder
6900GC14
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT 316 SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,335.00USD
$9.99 Shipping
available on backorder
6900GZ16-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,383.00USD
$9.99 Shipping
available on backorder

6900GZ

Base Model

Welded Internal Diaphragm

A metal diaphragm is welded to the inside of the pressure port, eliminating the O-Ring. This arrangement may be desired for processes where O-Rings may present a problem.

Welded External Diaphragm and Process Connection

This process connection is comprised of a metal diaphragm welded flush to the process face of a 1” MNPT pressure port, thereby eliminating both the port cavity and the O-Ring. O-Ring degradation and failure are no longer a concern, thus providing a cleaner and safer work environment, improving process reliability and reducing operating costs.

The Flush-Mount Process Connection is also suitable for processes which are highly viscous and prone to plugging conventional 'cavity-type' process ports by providing the sensing element direct access/contact to your process, much as a Remote Seal does.

Eliminate the requirement for a remote seal by using the Flush-Mount Welded Diaphragm.

Process Connection

Diaphragm

O-Ring

Output

Output

Output

Output

Output

Output

Output

Electrical Contacts

Paint

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.14 to 19.3
  • kPa: 13.8 to 1,931
  • psi: 2 to 280

Diaphragm Material

  • Hastelloy® C-276
  • Monel®
  • Stainless Steel

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Certification

  • CSA Listed by Canadian Standard Association (CSA) Testing Laboratories (File No. LR22665) for Enclosure (4) Non-hazardous Locations.

Electrical Connectors

  • 1/2" NPT Male
  • Electrical Connector with 4-Blades, Conforms to DIN-43650
  • Electrical Connector with Gold Contacts & Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NACE & NIST

  • NACE MR-0175:2003

NPT Connection

  • 1/2" NPT Female Welded Diaphragm - Internal with Port Cavity

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • None
  • Viton

Process Connection Material

  • 316 Stainless Steel
  • Hastelloy® C-276
  • Monel®

Proof Pressure

  • bar: 51.7 to 310
  • kPa: 5,171 to 31,026
  • psig: 750 to 4,500

Service

  • Sour (Oil & Gas)

Set Point - Decreasing

  • bar: 0.07 to 215
  • kPa: 6.9 to 21,512
  • psig: 1 to 3,120

Set Point - Increasing

  • bar: 0.21 to 234
  • kPa: 20.7 to 23,442
  • psig: 3 to 3,400

Standard Features

  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 34.5 to 207
  • kPa: 3,447 to 20,684
  • psig: 500 to 3,000
