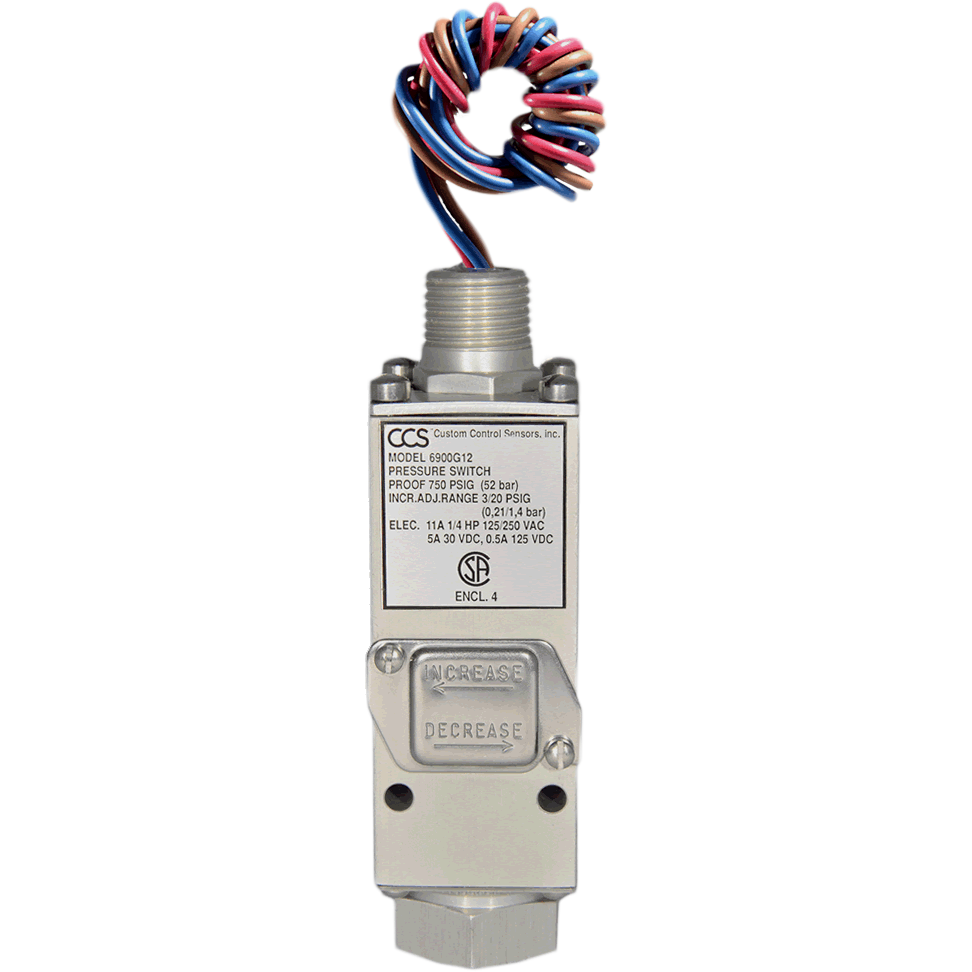

6900GZ Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.2 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.6 kPa, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 13.79 to 1930.0 kPa, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.8 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.7 kPa, 51.7 to 517 bar
  • Wetted Materials:

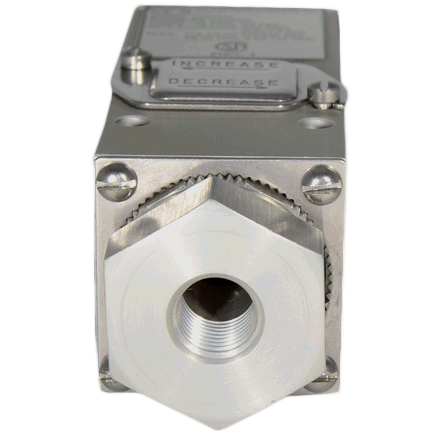

    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA, CE Mark, NACE, CRN
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 3 to 3400 psig, 20.7 to 23,442.2 kPa, 0.21 to 234 bar
    • Decreasing: 1 to 3120 psig, 6.9 to 21,511.6 kPa, 0.07 to 215 bar
  • Deadband: Approximately 2 to 280 psi, 13.79 to 1930.0 kPa, 0.14 to 19.3 bar
  • System Pressure (Maximum): 500 to 5000 psig, 3447.38 to 34,473.8 kPa, 34.5 to 345 bar
  • Proof Pressure: 750 to 7500 psig, 5171.07 to 51,710.7 kPa, 51.7 to 517 bar
  • Wetted Materials:
    • Pressure Port: 1/2"-14 Female NPT 316 Stainless Steel Pressure Port
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA, CE Mark, NACE, CRN
44 models matching criteria
6900GZ20
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
9 In Stock
$578.75USD
$8.27 Shipping
6900GZ22
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
7 In Stock
$210.30USD
$8.27 Shipping
6900GZ24
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
3 In Stock
$257.50USD
$8.27 Shipping
6900GZ18
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$578.75USD
$8.27 Shipping
6900GZ12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$622.63USD
$8.27 Shipping
6900GZ14
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$622.63USD
$8.27 Shipping
6900GZ16
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$622.63USD
$8.27 Shipping
6900GZF12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Ethylene Propylene O-Ring, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
45 - 60 days
$681.41USD
$8.27 Shipping
6900GZ18-7008
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Gold Contacts, Viton
5 - 7 weeks
$701.28USD
$8.27 Shipping
6900GZM12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT
5 - 7 weeks
$772.49USD
$8.27 Shipping
6900GZM14
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$772.49USD
$8.27 Shipping
6900GZM16
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$772.49USD
$8.27 Shipping
6900GZM18
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$772.49USD
$8.27 Shipping
6900GZM20
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT
5 - 7 weeks
$772.49USD
$8.27 Shipping
6900GZM22
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, DPDT
5 - 7 weeks
$772.49USD
$8.27 Shipping
6900GZ14-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$978.65USD
$8.27 Shipping
6900GZ22-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$980.31USD
$8.27 Shipping
6900GZ12-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$992.73USD
$8.27 Shipping
6900GC18
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
49 - 54 days
$1,058.96USD
$8.27 Shipping
6900GC22
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule
5 - 7 weeks
$1,063.93USD
$8.27 Shipping
6900GC12
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,078.83USD
$8.27 Shipping
6900GC20
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,091.25USD
$8.27 Shipping
6900GC16
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,098.71USD
$8.27 Shipping
6900GC14
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT 316 SST Port & Diaphragm, Welded Capsule, SPDT, Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,105.33USD
$8.27 Shipping
6900GZ16-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, DIN , Approvals: CSA, CE, CRN, CCC, EAC
5 - 7 weeks
$1,145.07USD
$8.27 Shipping

6900GZ

Base Model

Welded Internal Diaphragm

A metal diaphragm is welded to the inside of the pressure port, eliminating the O-Ring. This arrangement may be desired for processes where O-Rings may present a problem.

Welded External Diaphragm and Process Connection

This process connection is comprised of a metal diaphragm welded flush to the process face of a 1” MNPT pressure port, thereby eliminating both the port cavity and the O-Ring. O-Ring degradation and failure are no longer a concern, thus providing a cleaner and safer work environment, improving process reliability and reducing operating costs.

The Flush-Mount Process Connection is also suitable for processes which are highly viscous and prone to plugging conventional 'cavity-type' process ports by providing the sensing element direct access/contact to your process, much as a Remote Seal does.

Eliminate the requirement for a remote seal by using the Flush-Mount Welded Diaphragm.

Process Connection

Diaphragm

O-Ring

Output

Output

Output

Output

Output

Output

Output

Electrical Contacts

Paint
